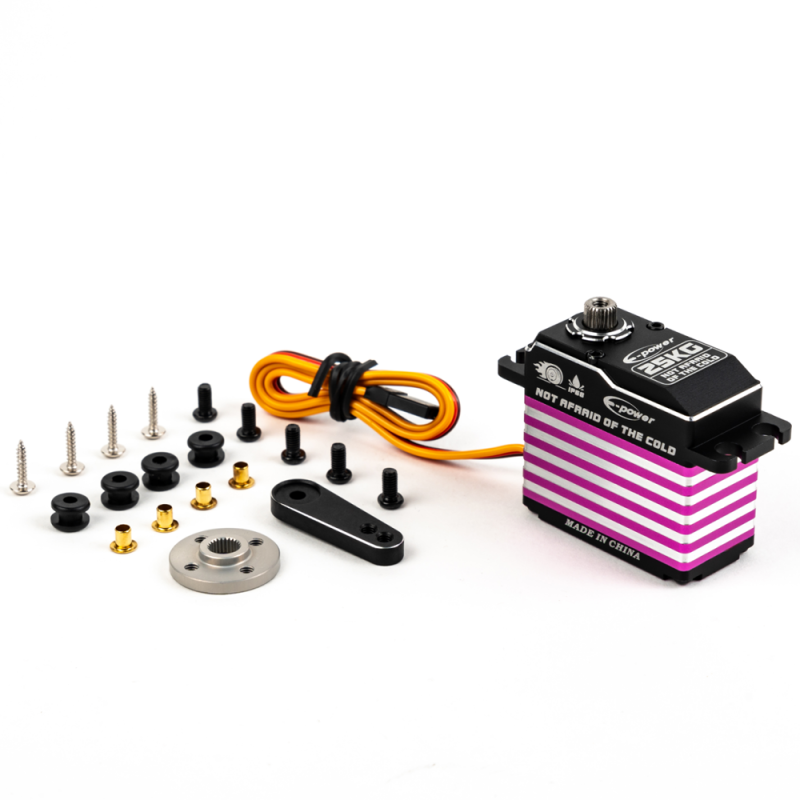

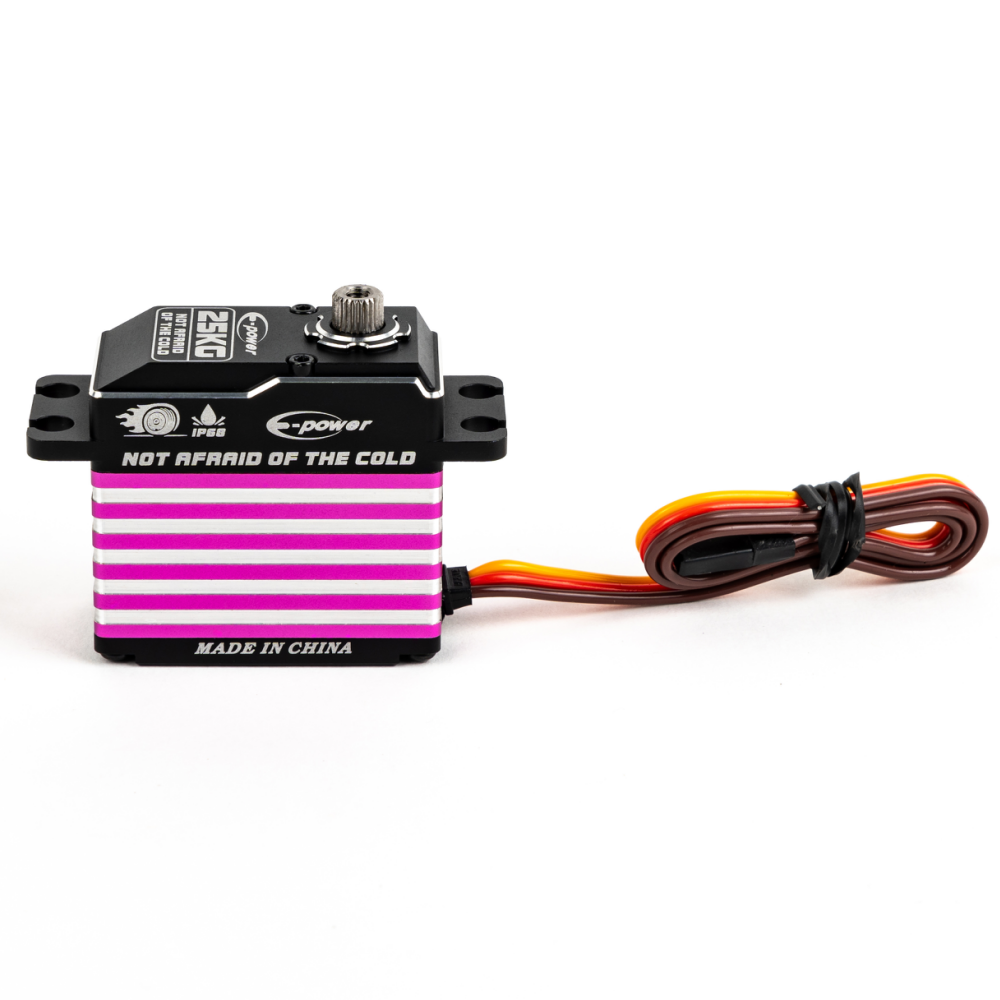

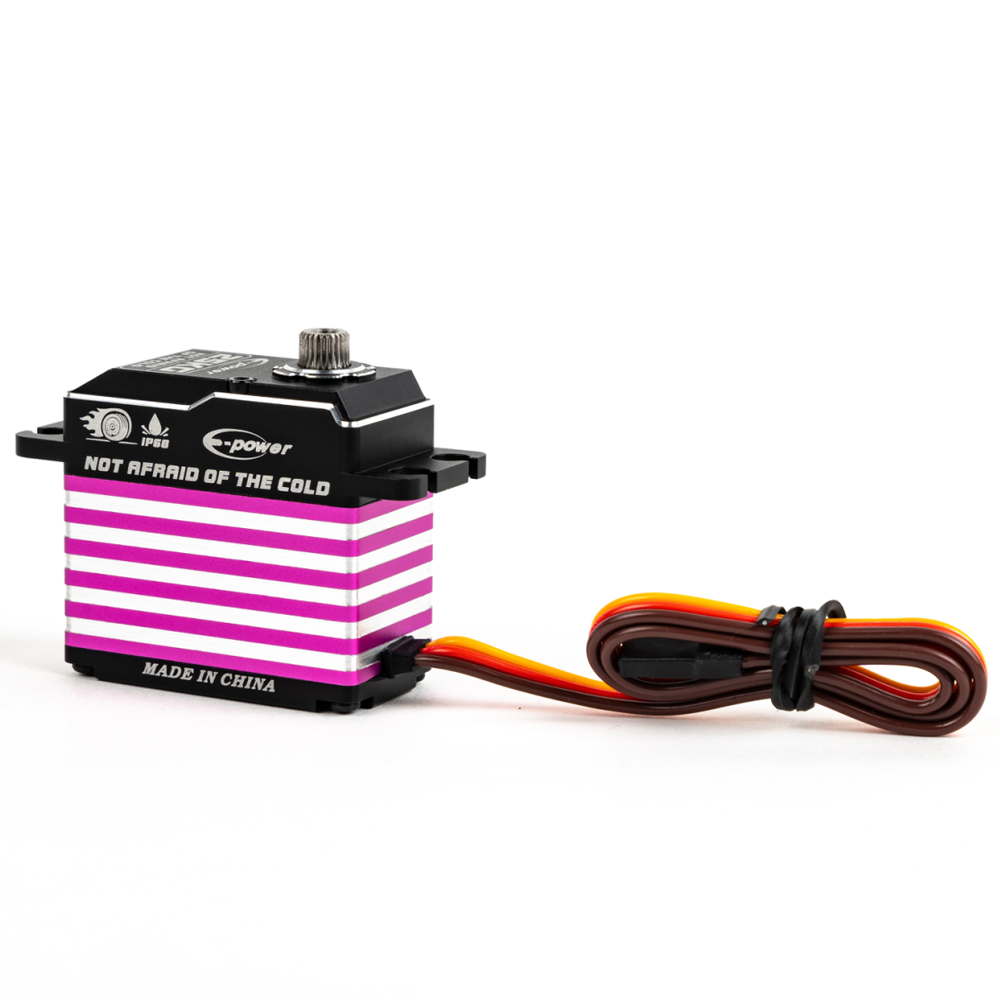

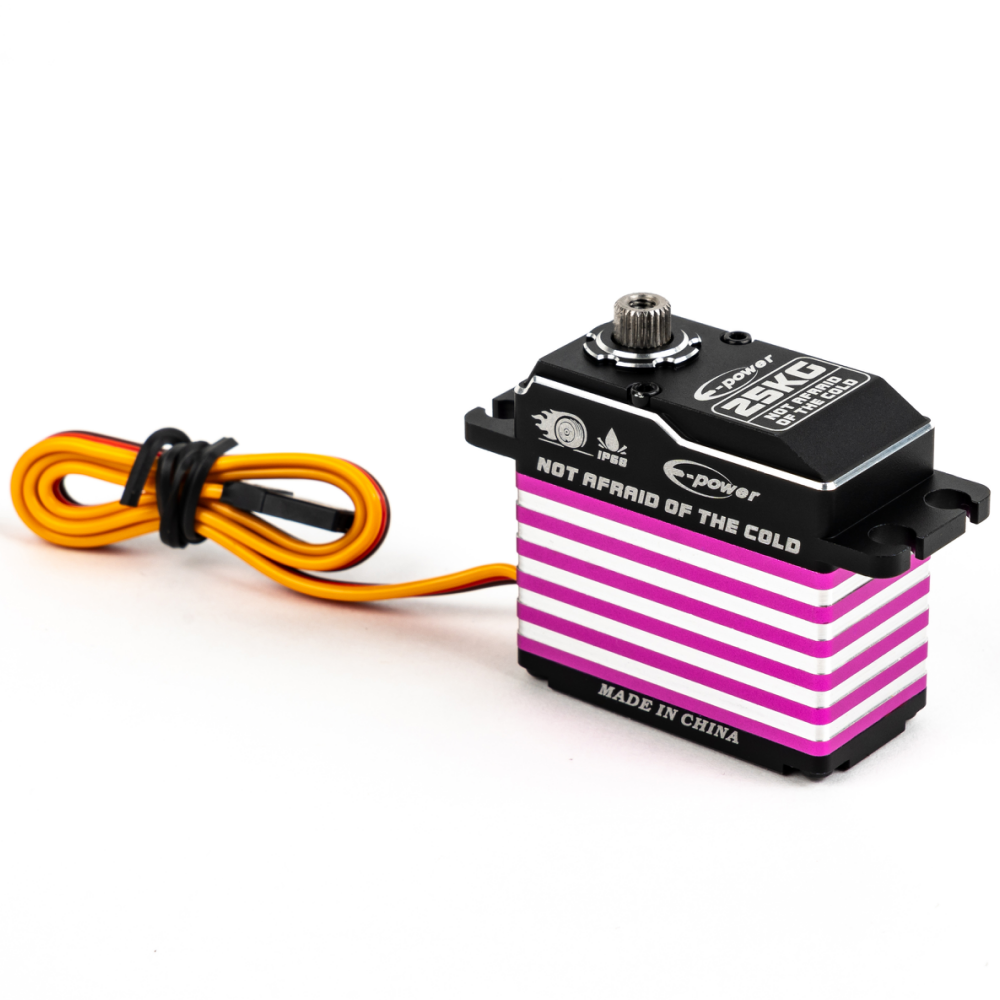

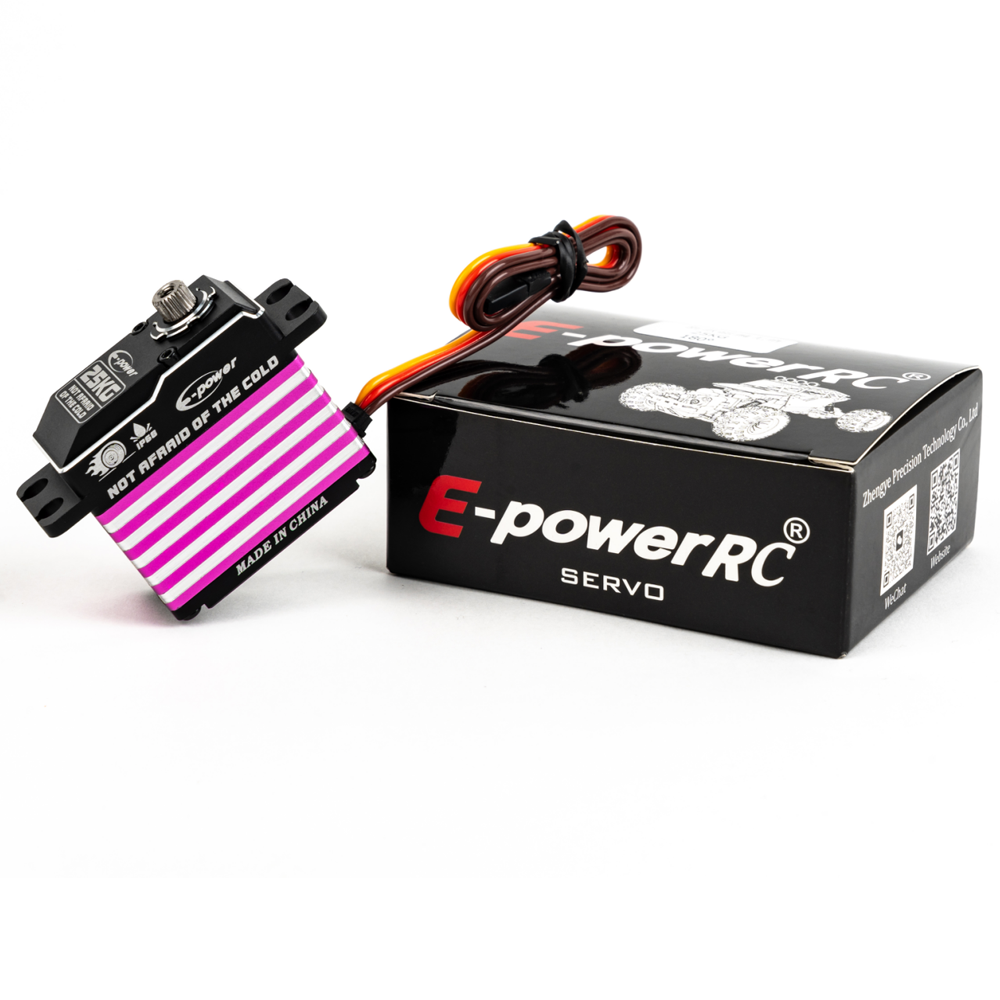

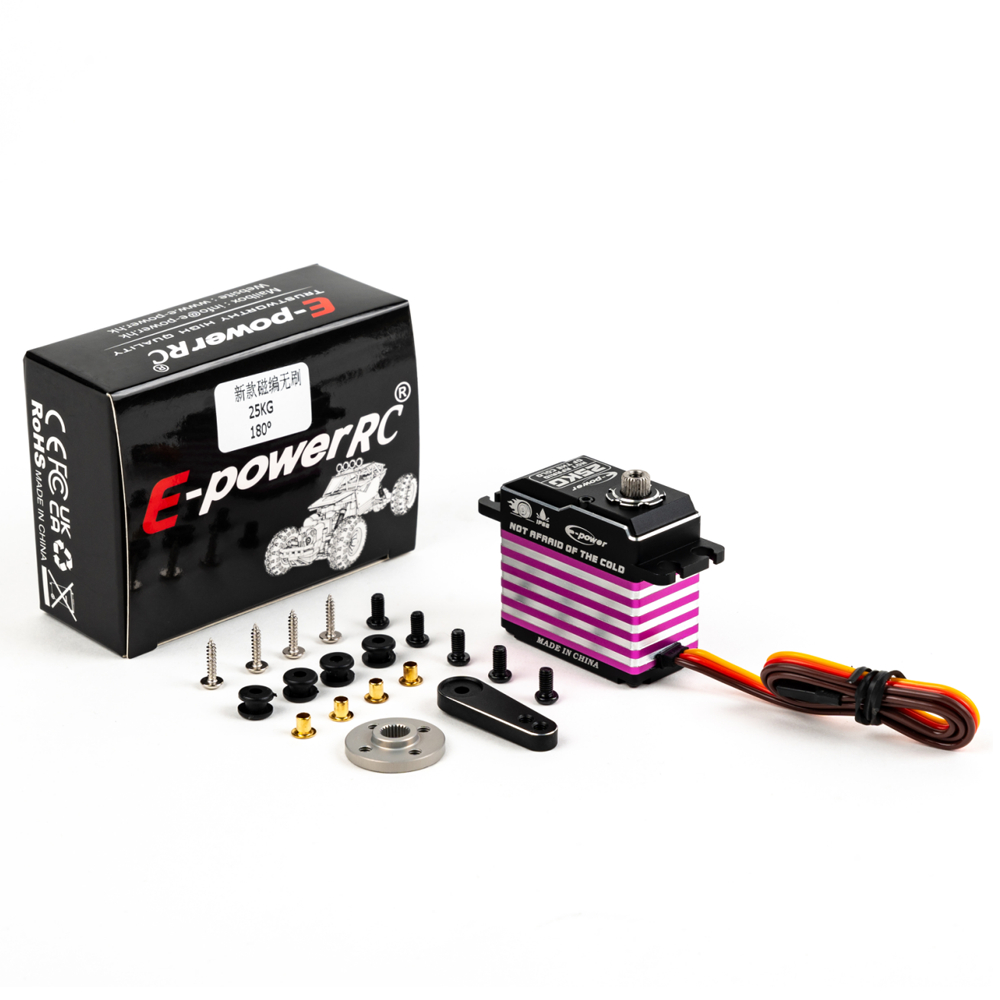

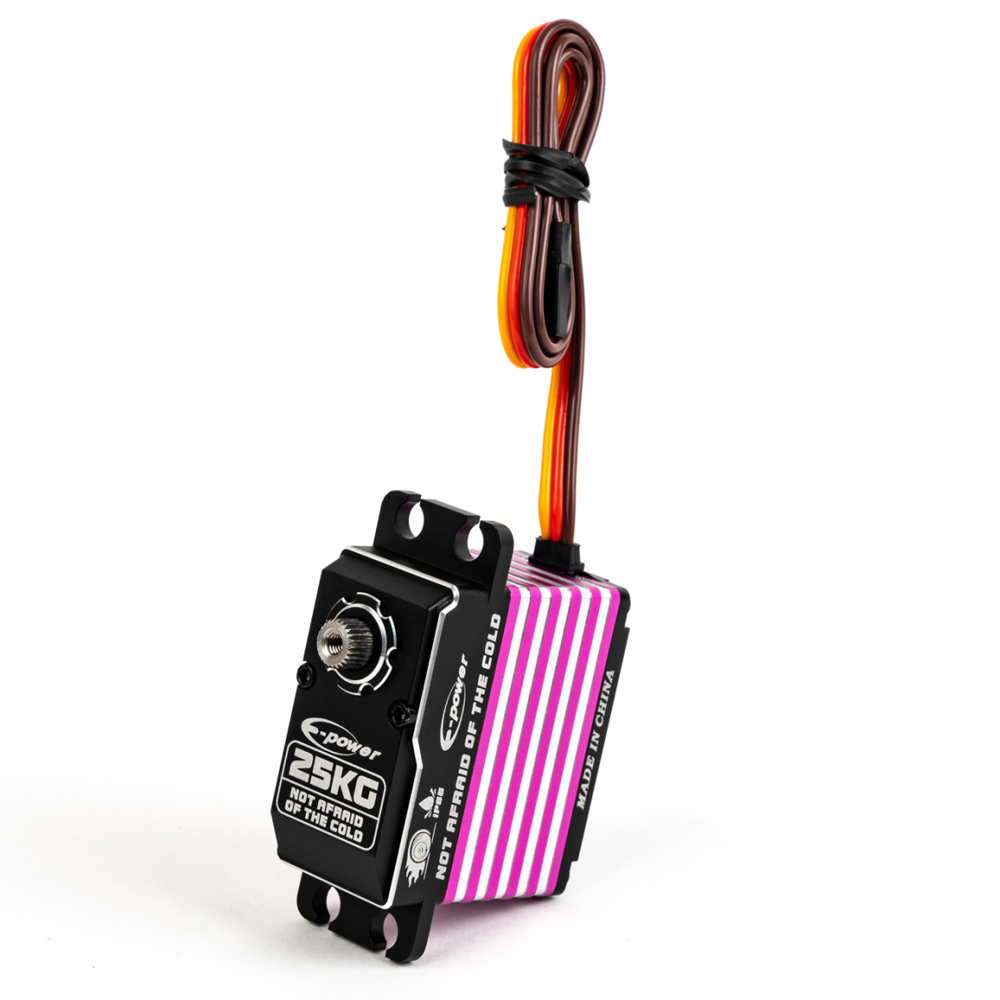

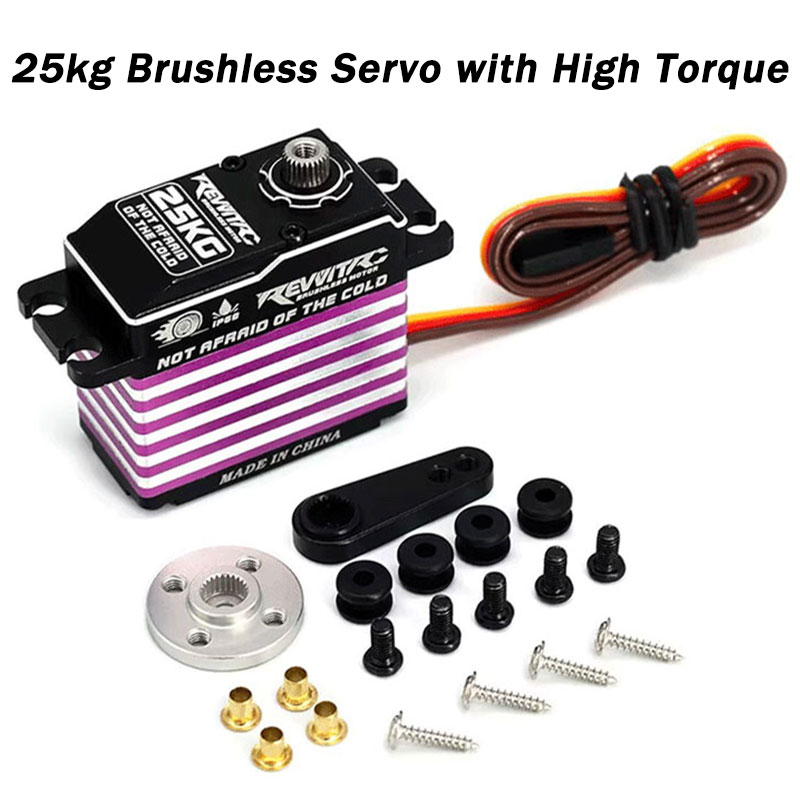

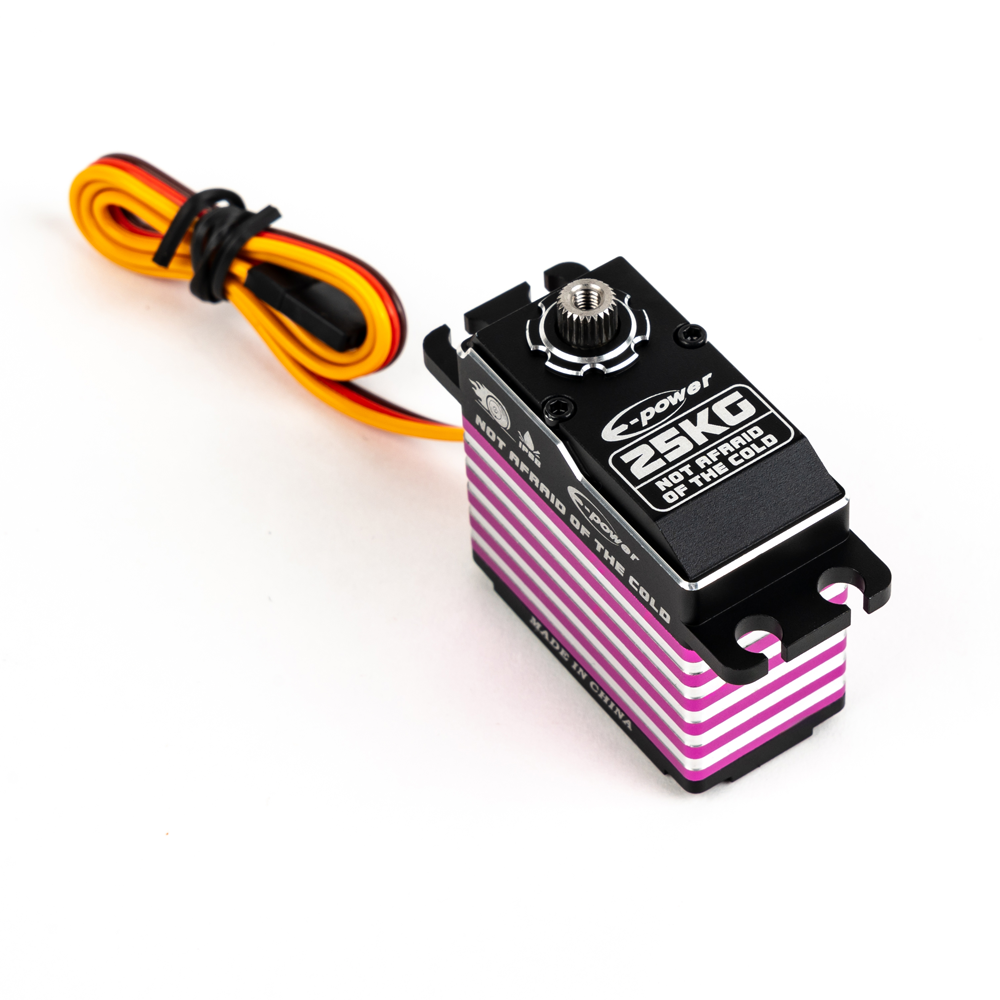

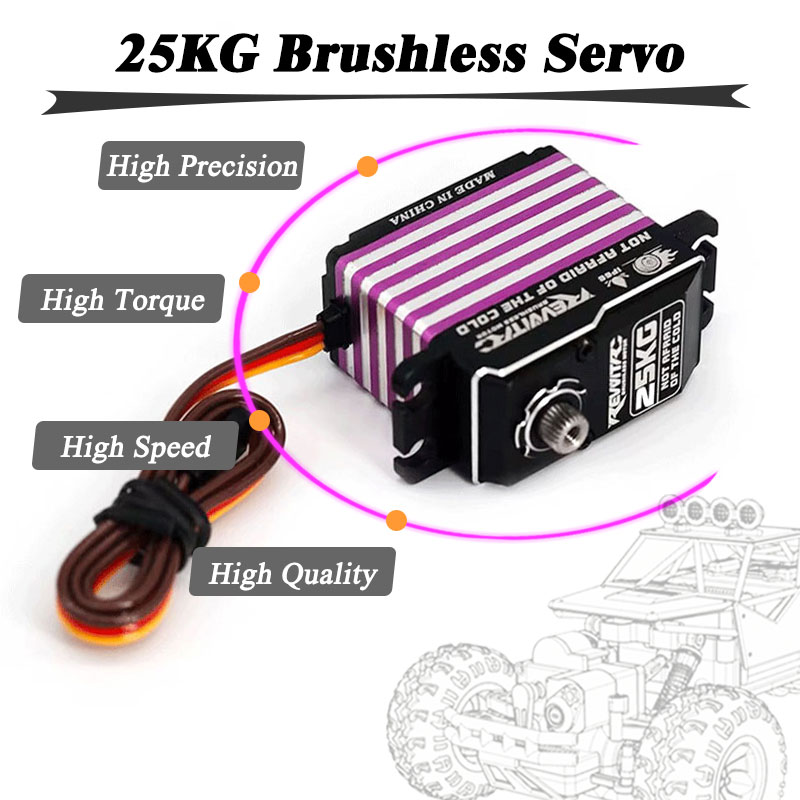

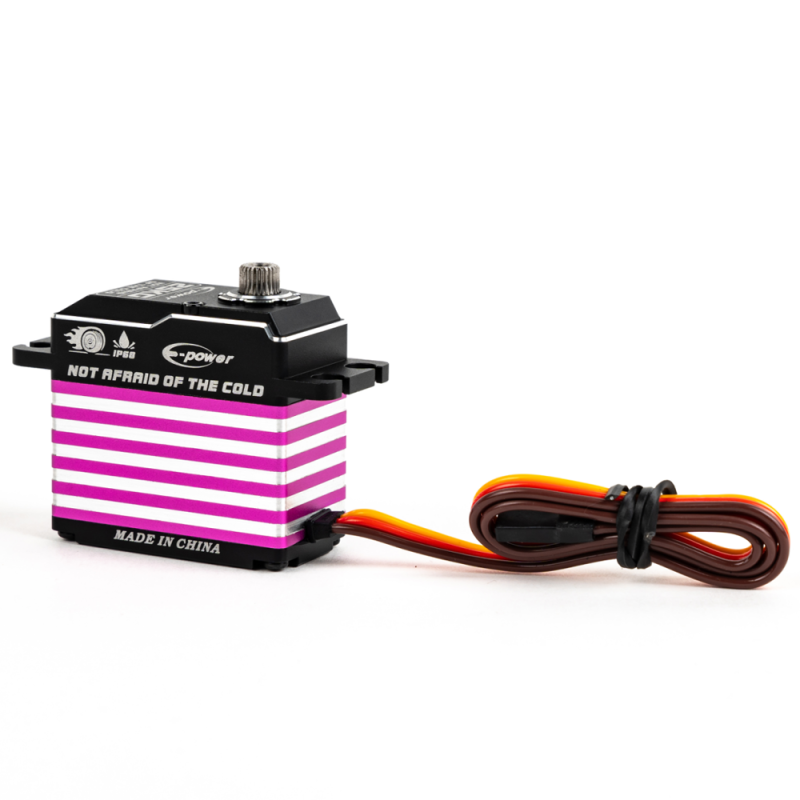

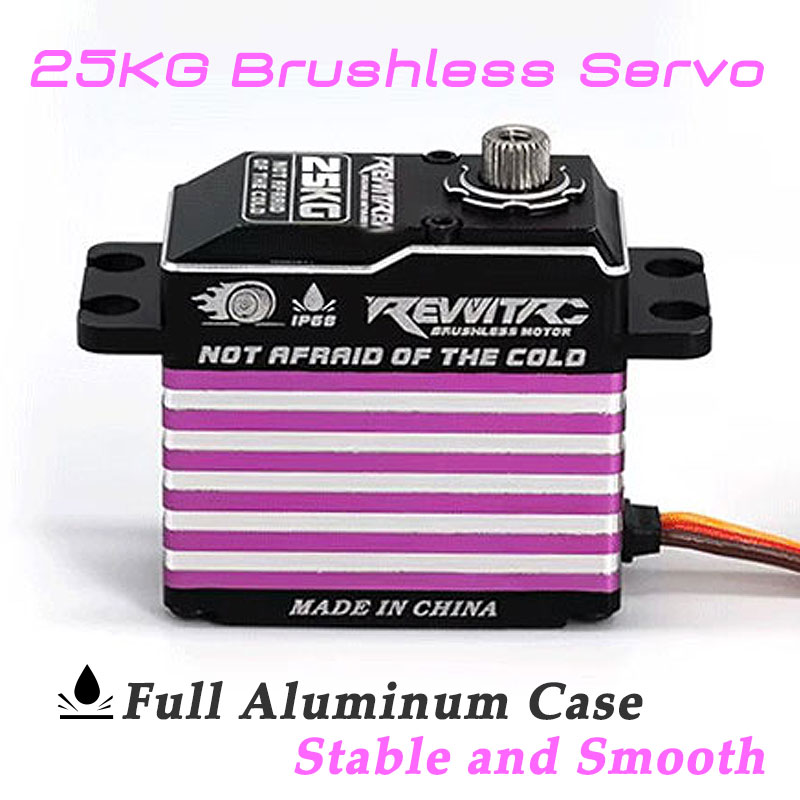

RevvitRC Magnetically Programmed Metal Brushless Servo 25KG Torque Waterproof Fast Speed For 1:8/10 Climbing Barrow Robots
FEATURES:

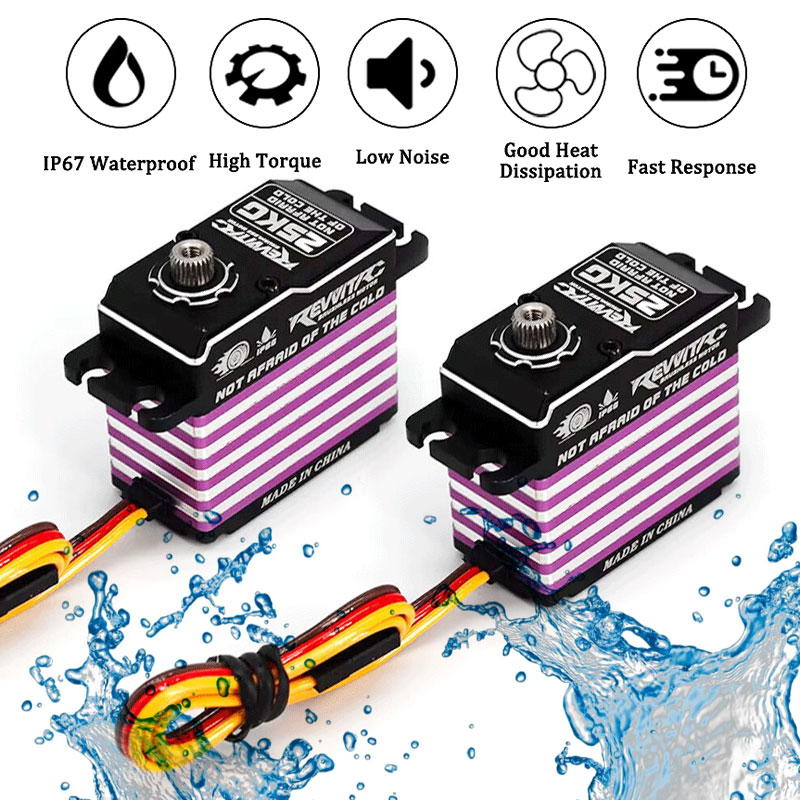

1.Waterproof: IP67, can control angle range from 0 to 360 degrees, excellent linearity and precise control.
2.Widely used digital servo: steering servo (control angle 180°/270°/360° optional) compatible with 1/8, 1/10 scale Clawer Truck, Traxxas, scx10, RC car/robot/boat and other RC models.

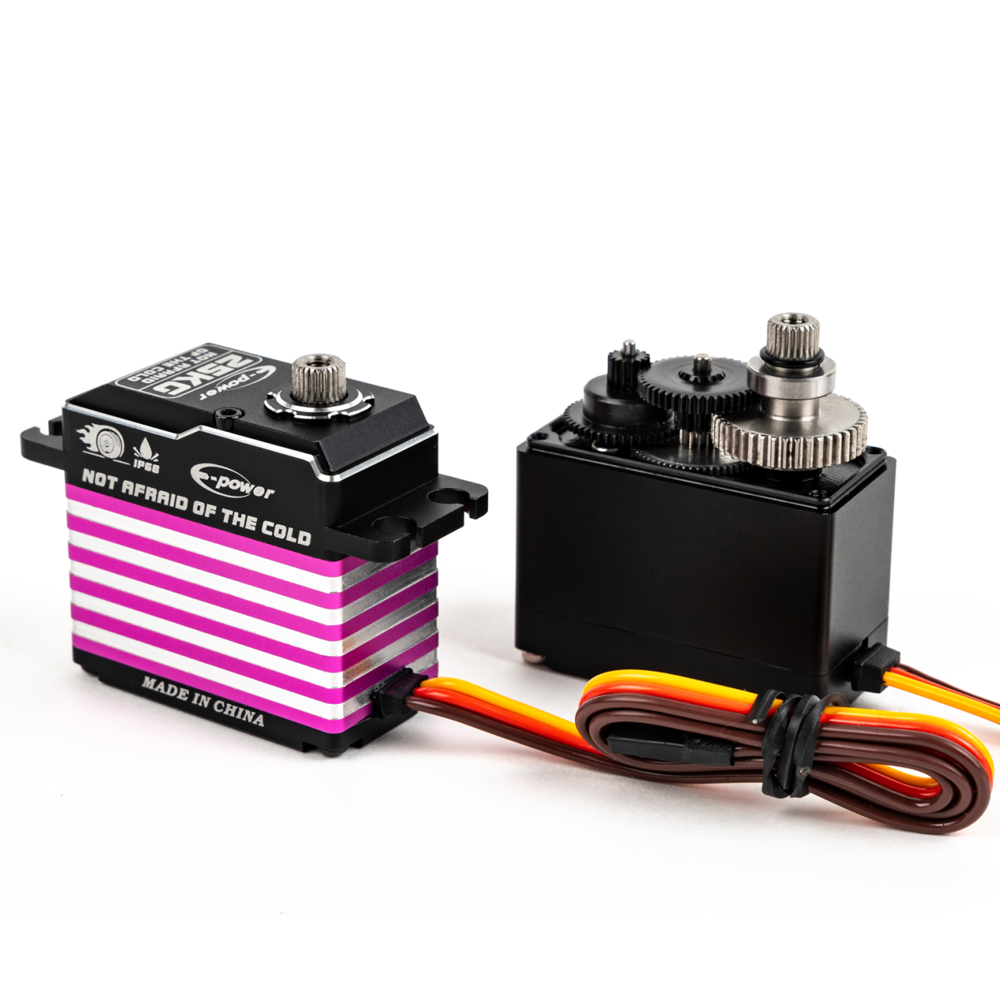

3.Metal Gear Brushless Servo: Equipped with stainless steel gears, full CNC aluminum housing, low noise, light weight, double ball bearings. Effectively avoid the phenomenon of "sweeping teeth", to ensure that long time high frequency operation is still smooth and stable.
Product Description:

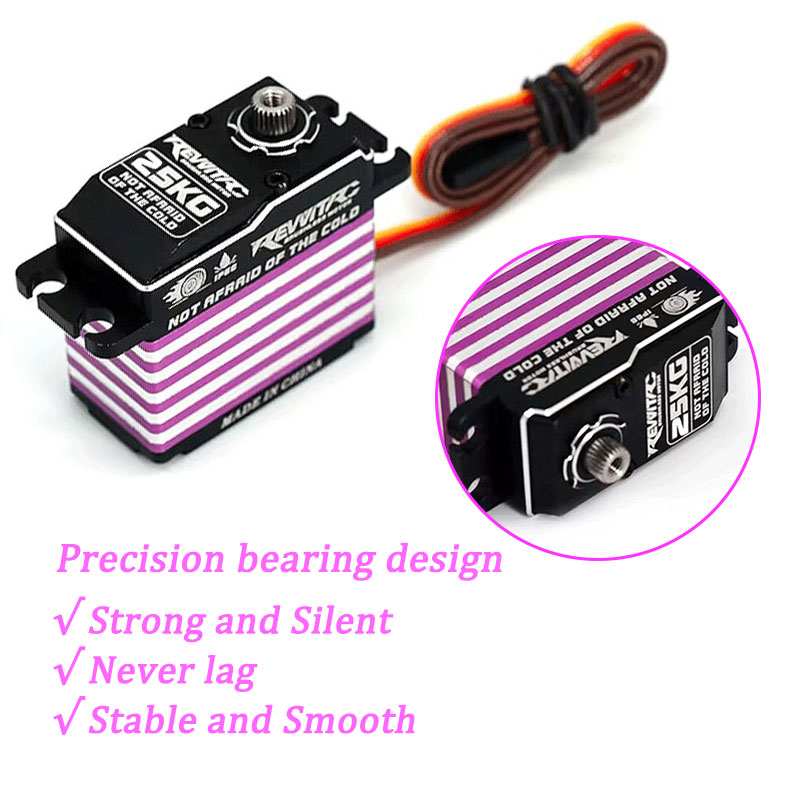

RevvitRC digital waterproof servo system is brushless, adding new bearing technology than ordinary servo system. Refuse to sweep the teeth! Smoother, faster response, better price! Better after-sales service! All for customer's good shopping experience~

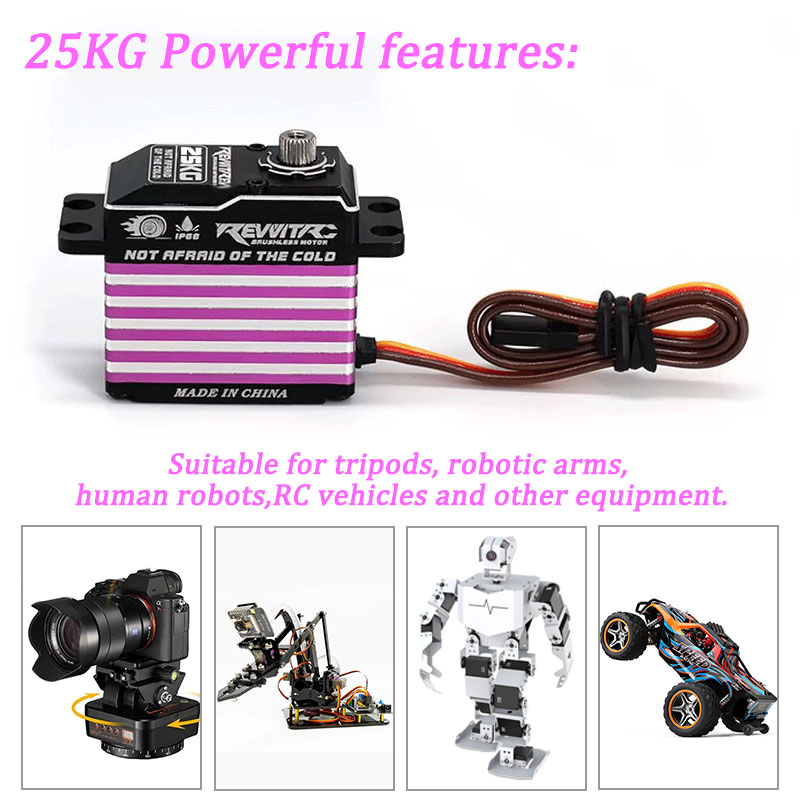

It is a great accessory for your RC cars, RC trucks, track boats, robots and DIY model toys!
Product Description:
RevvitRC digital waterproof servos are brushless, adding new bearing technology over normal servos. Refuse to sweep teeth! Smoother, faster response and better price! Better after-sales service! All for customer's good shopping experience~
It is a great accessory for your RC cars, RC trucks, track boats, robots and DIY model toys!

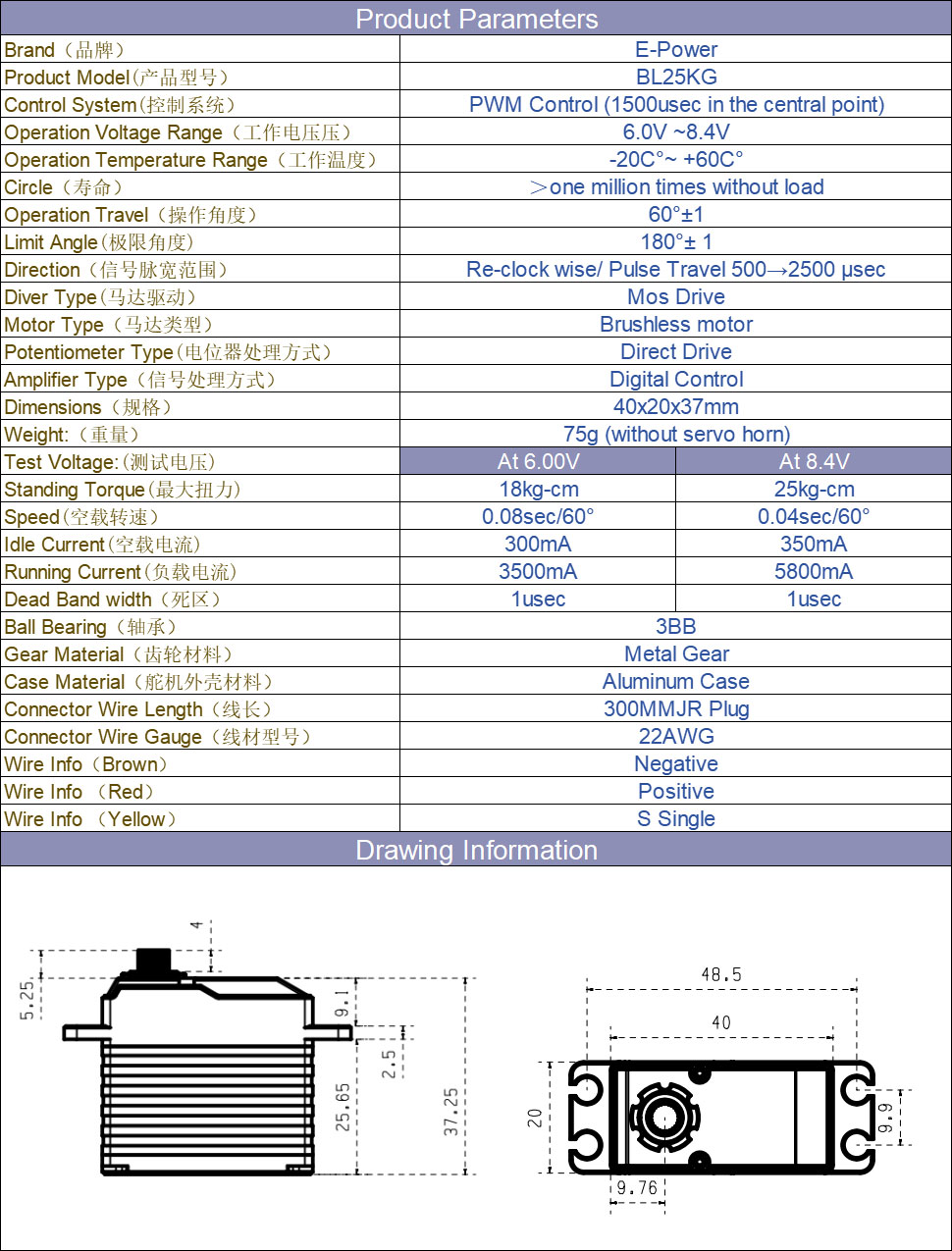

Specifications:
Brand: RevvitRC
Model: BL25KG
Ball Bearing: 3BB
Sub Type: Mos Drive
Motor Type: DC Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Deadband Width: 1 usec
Gear Material: Metal Gear
Housing Material: Aluminum Housing
Operating Voltage Range: 6.0V ~ 8.4V
Operating Temperature Range: -20C°~ +60°C
Control angle: 180°/270°/360° optional
Direction: Re-clock wise/ Pulse Travel 500→2500 μsec
Control system: PWM control (center point 1500 usec)
Number of cycles without load: >one million times without load Operation Travel: 60°±1
Limit Angle: 180°±1/270°±1 selectable
Dimension: 40x20x37mm
Weight: 75g (without servo horn)
Connector Wire Length: 300MM JR JST
Connector Wire Gauge: 22AWG
