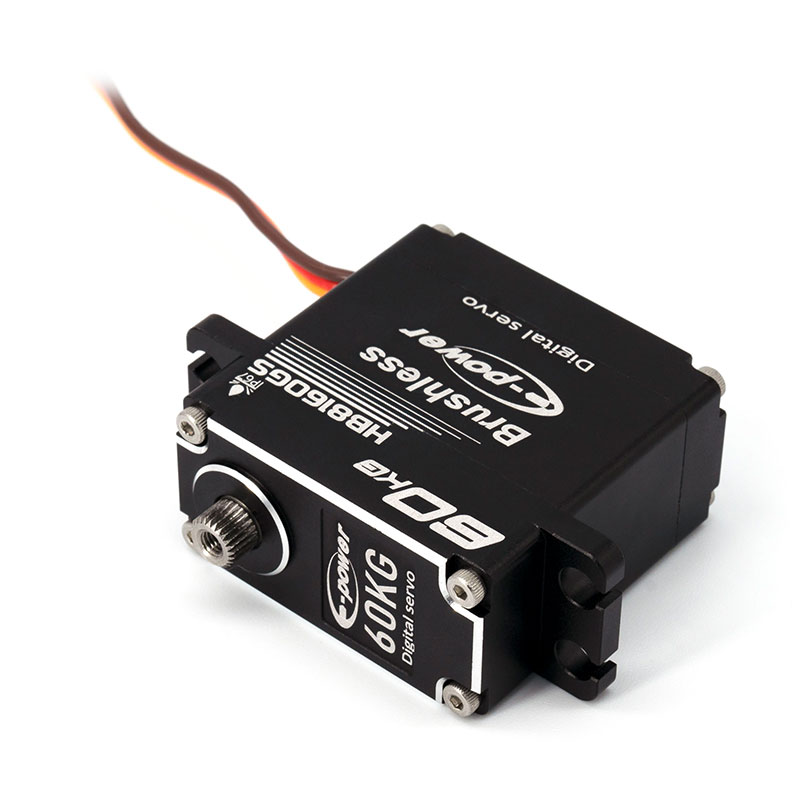

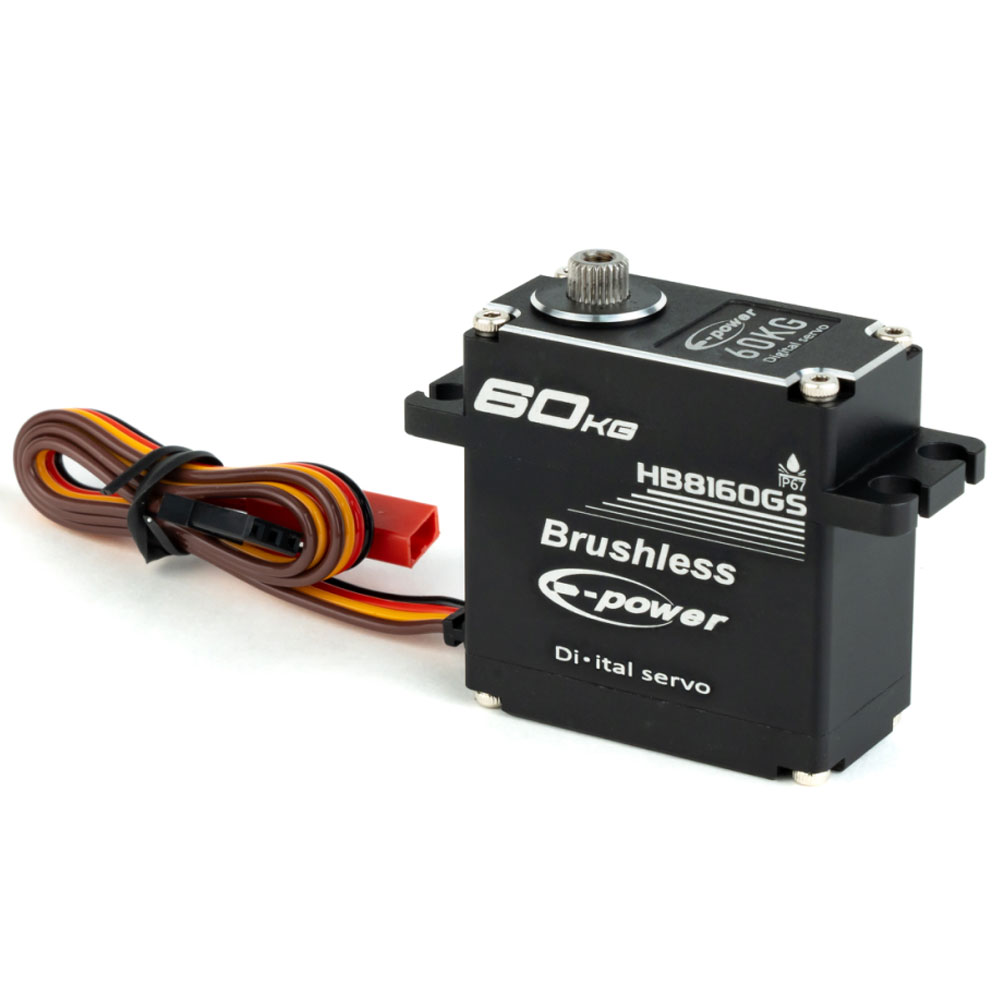

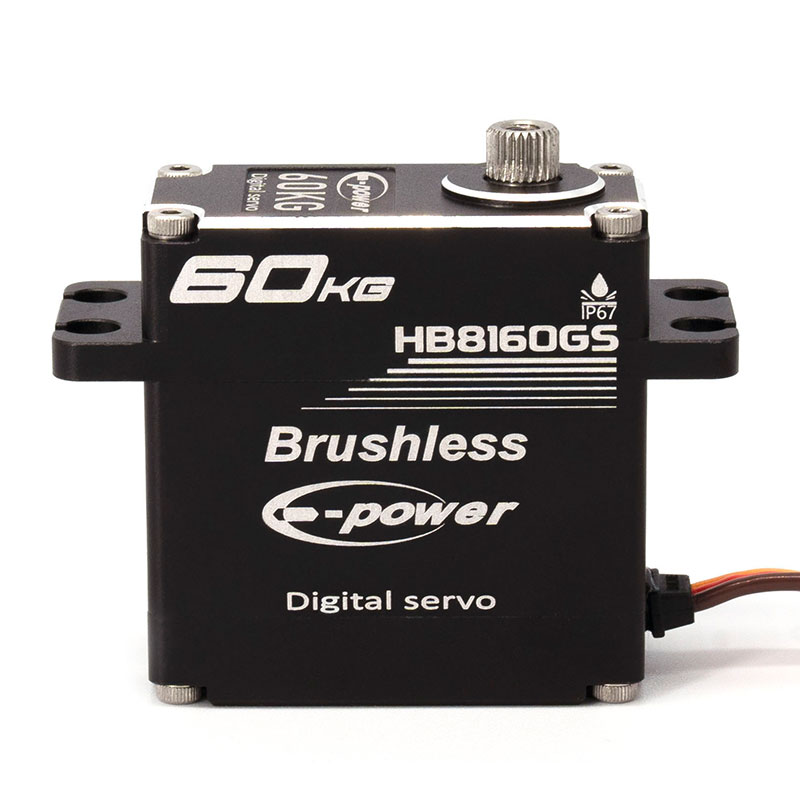

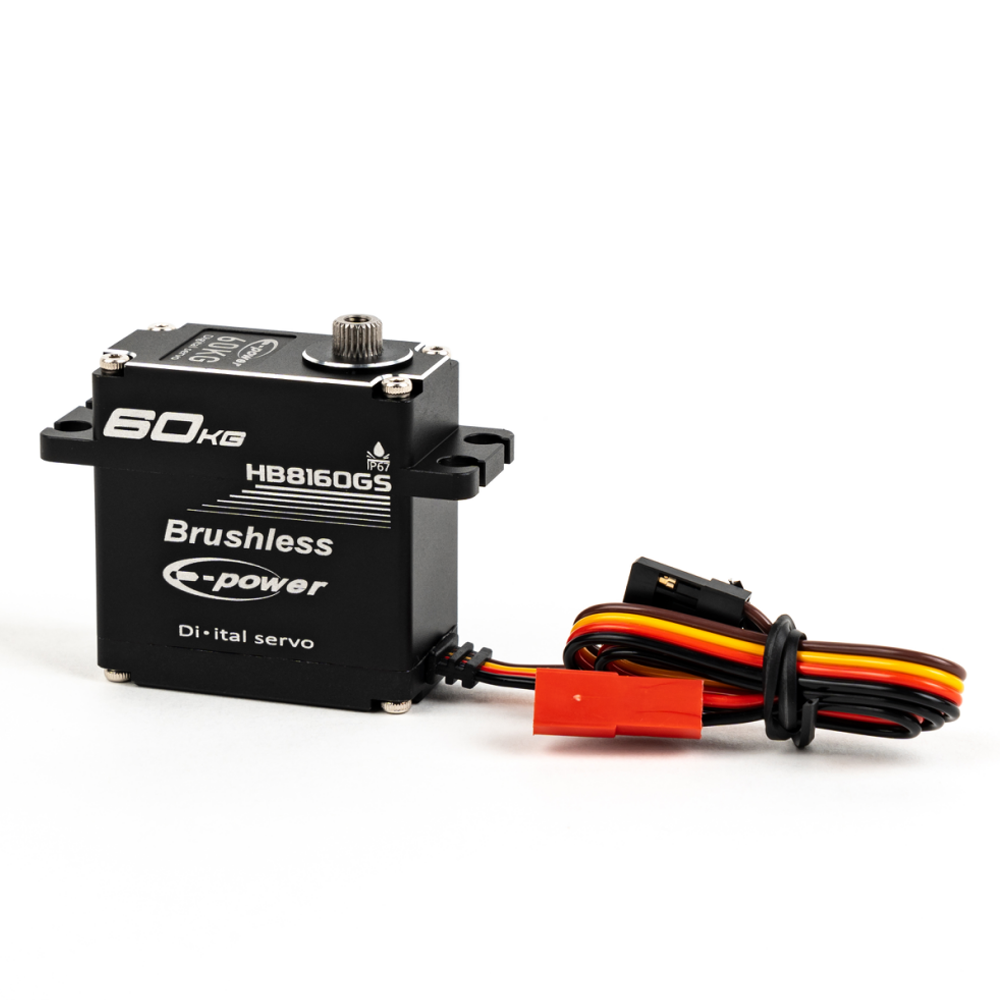

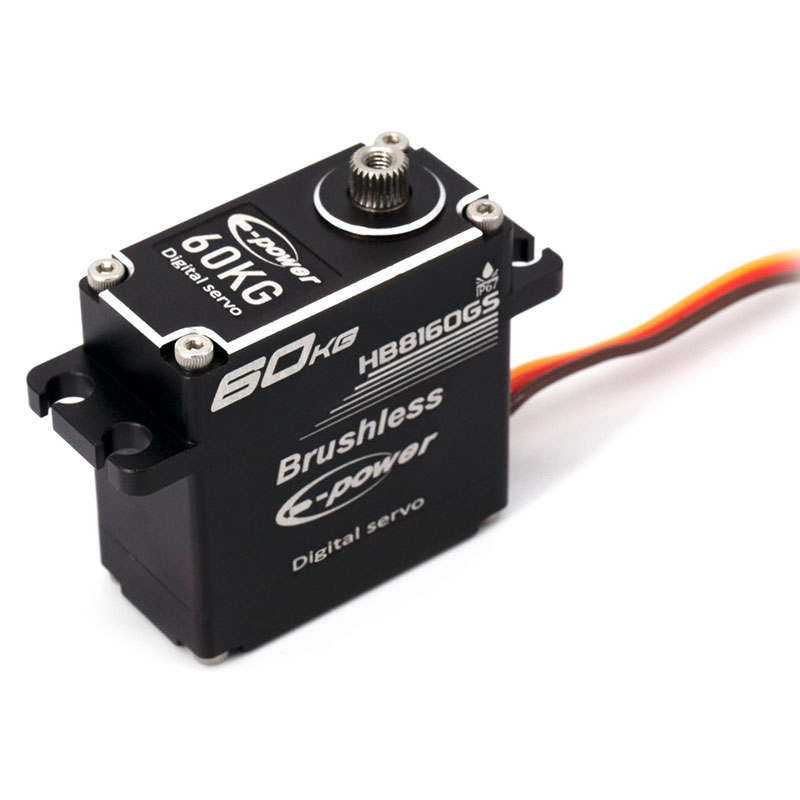

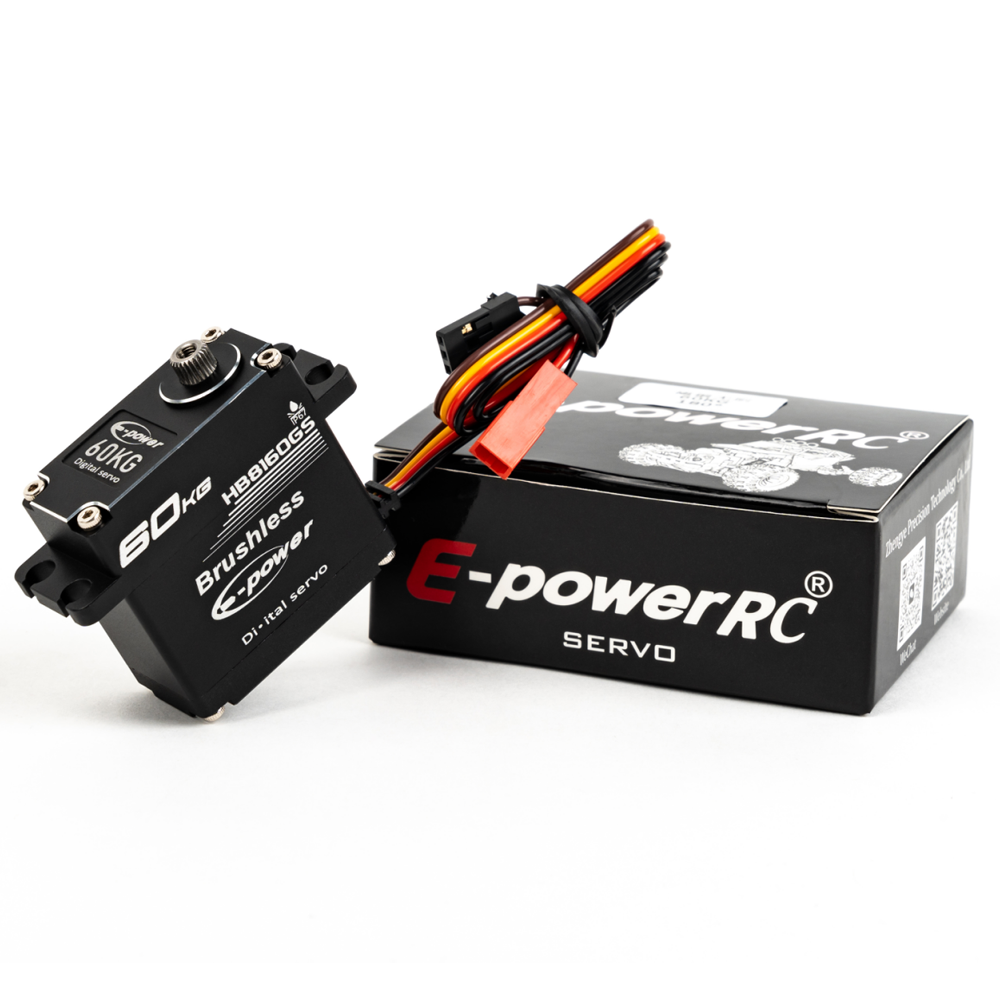

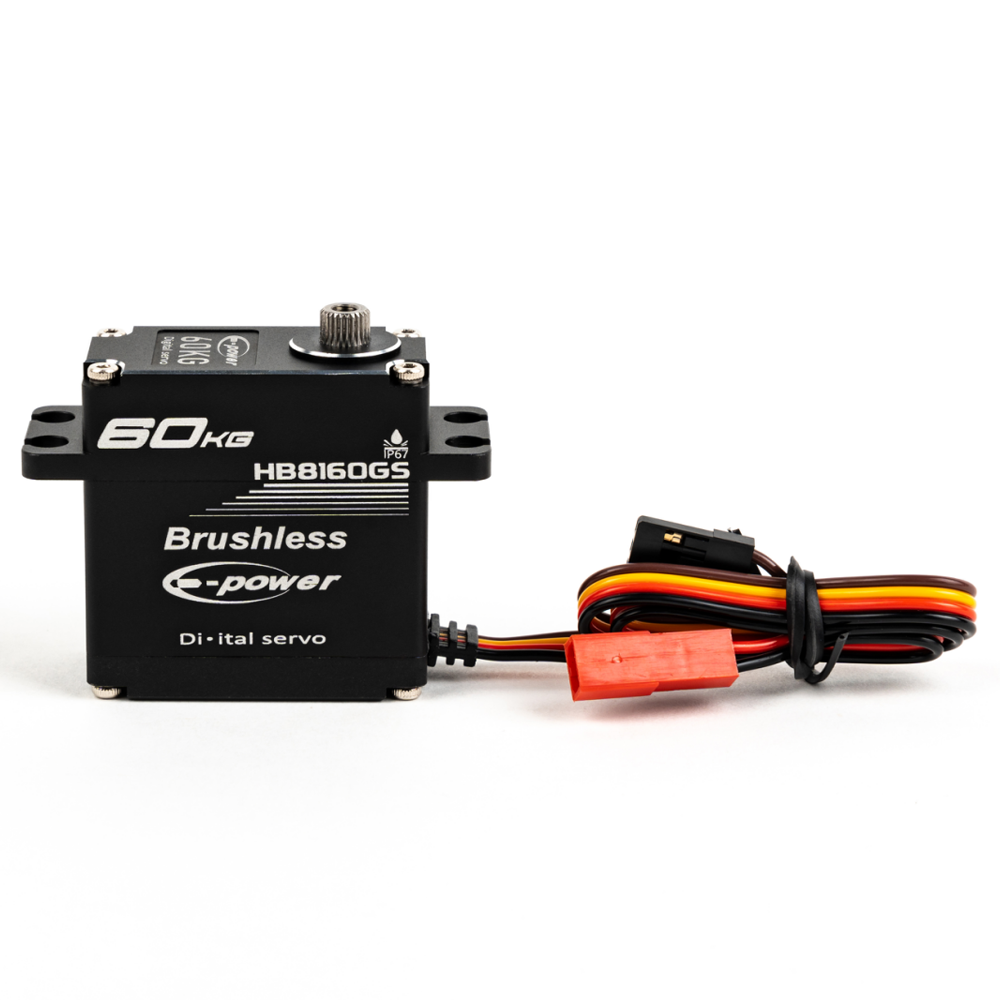

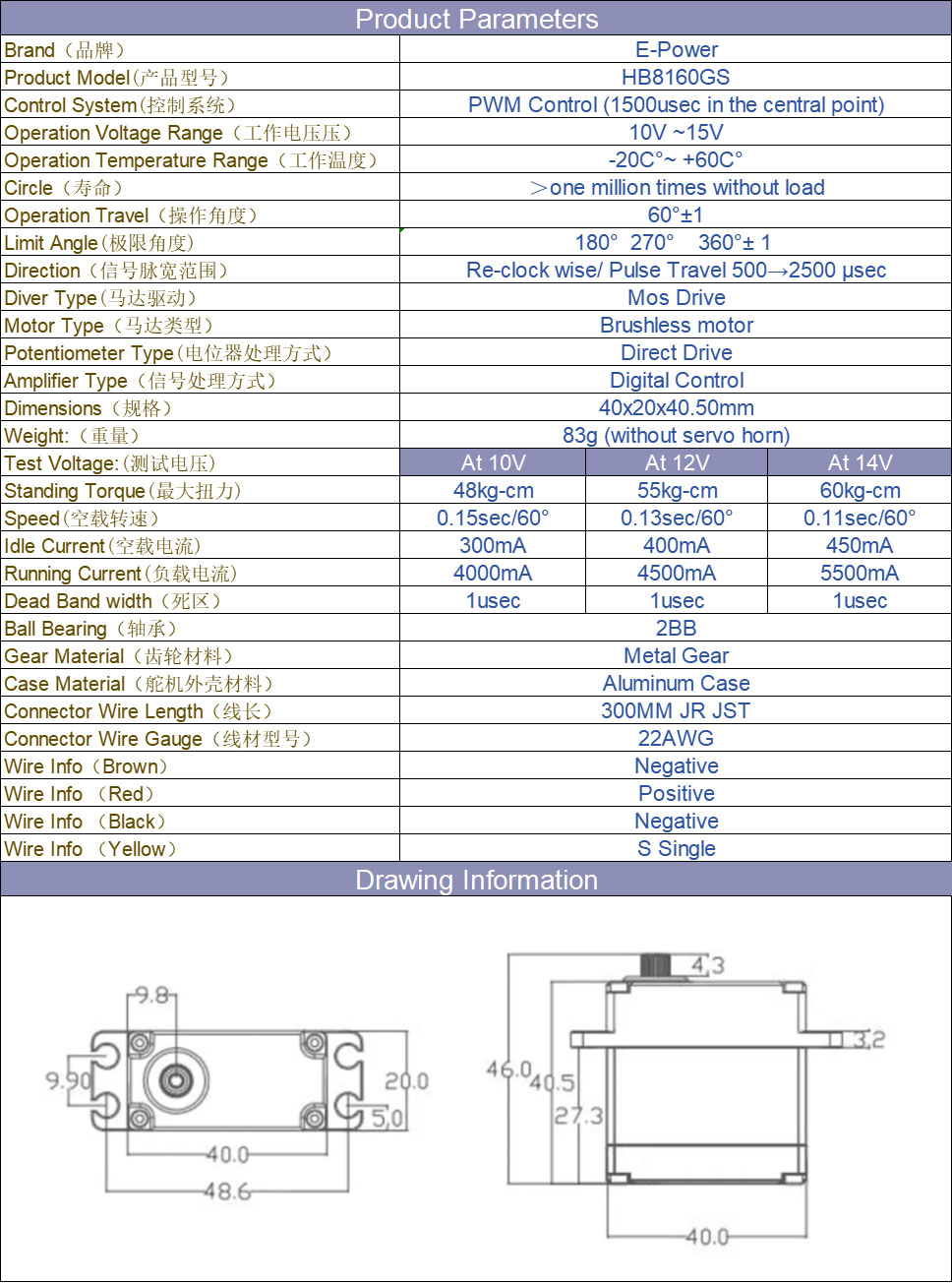

Specifications:

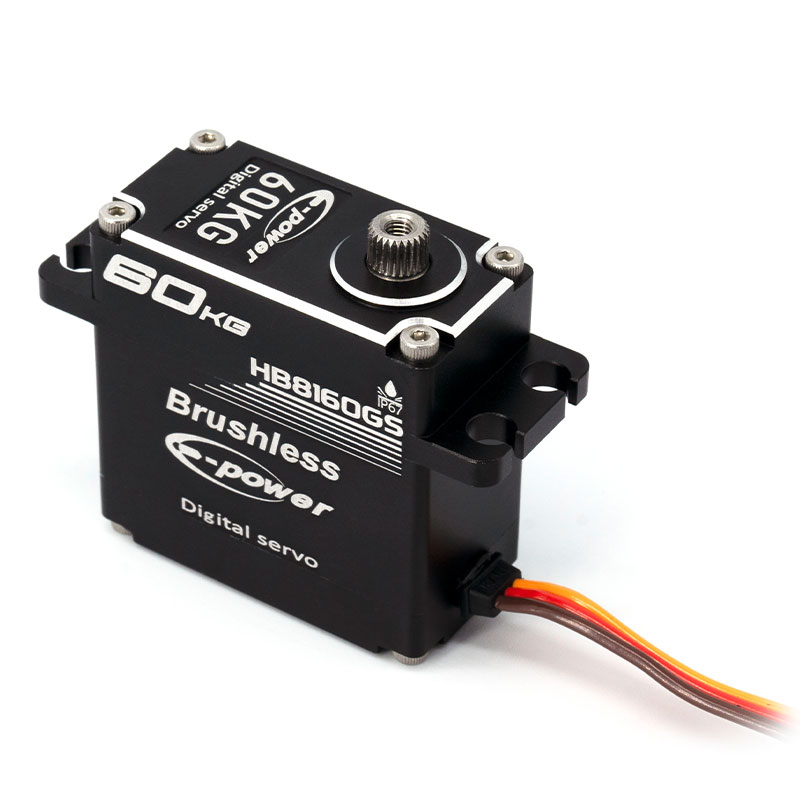

Brand: E-power
Model: HB8160GS
Ball Bearing: 2BB
Diver type: Mos Drive
Motor Type: Brushless motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Dead band width: 1 usec
Gear Material: Metal Gear
Case Material: Aluminum Case
Operation Voltage Range: 10V ~15V
Operation Temperature Range: -20C°~ +60C°
Control Angle: 180°/270°/360° Optional
Direction: Re-clock wise/ Pulse Travel 500→2500 μsec
Control System: PWM Control (1500usec in the central point)
Circle: ＞100 milion times without load
Operation Travel: 60°±1
Limit angle: 180° 270° 360°± 1
Dimensions: 40x20x40.50mm
Weight: 83g (without servo horn)
Standing Torque: 0.15sec/60°,48kg-cm-@10V ;0.13sec/60°,55kg-cm-AT 12V;0.11sec/60°,60kg-cm-@14V
Idle Current: 300mA-@10V; 400mA-AT 12V; 450mA-@14V
Running Current: 4000mA-@10V ; 4500mA-AT 12V；5000mA-@14V

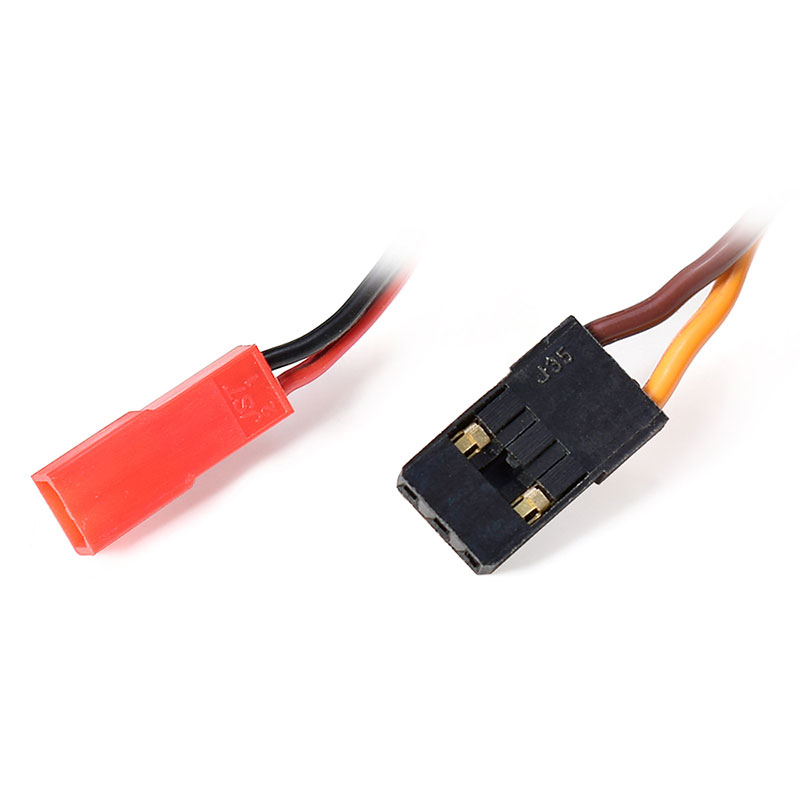

Connector Wire Length: 300MMJR JST Plug
Connector Wire Gauge: 22AWG
Wire Info (Brown): Negative
Wire Info (Red): Positive
Wire Info (Black): Negative
Wire Info (Yellow): S Sinqle
