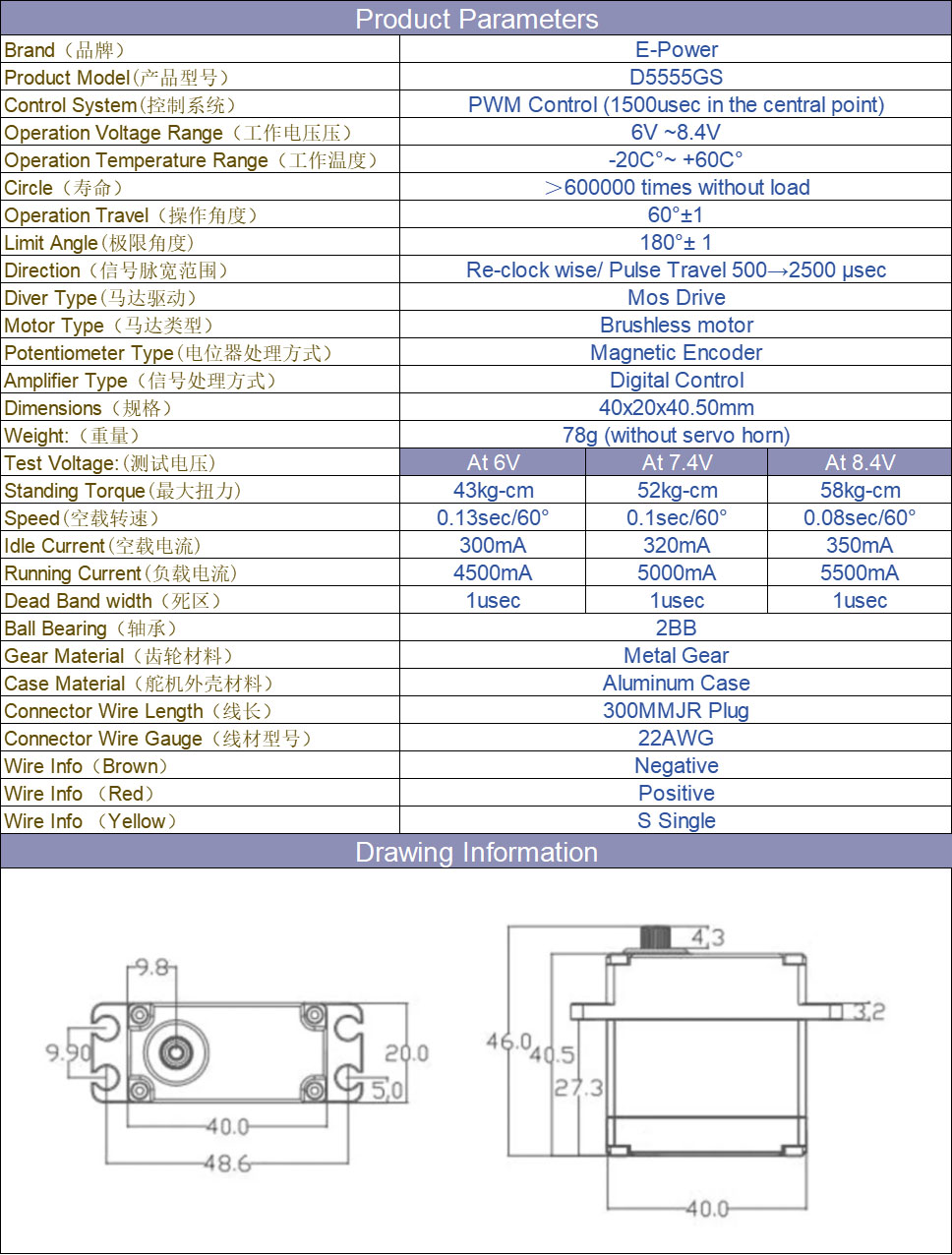

Specifications:

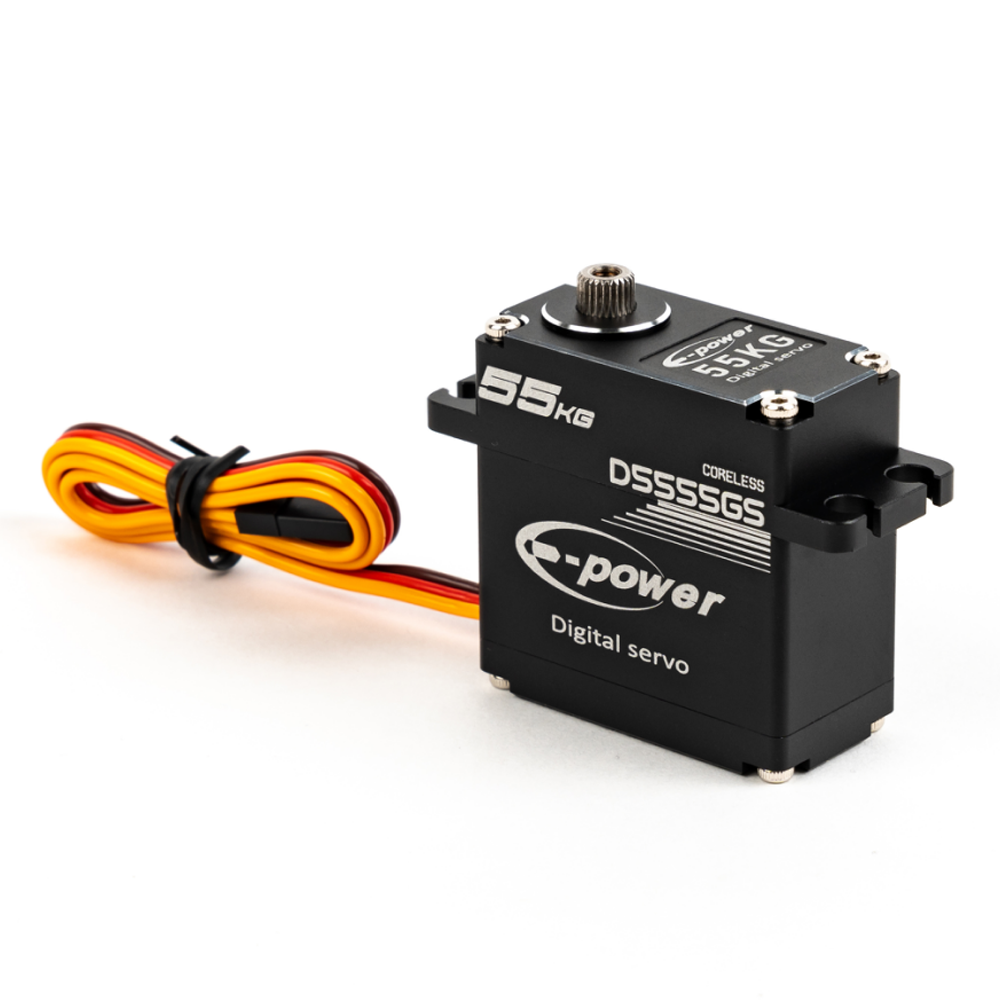

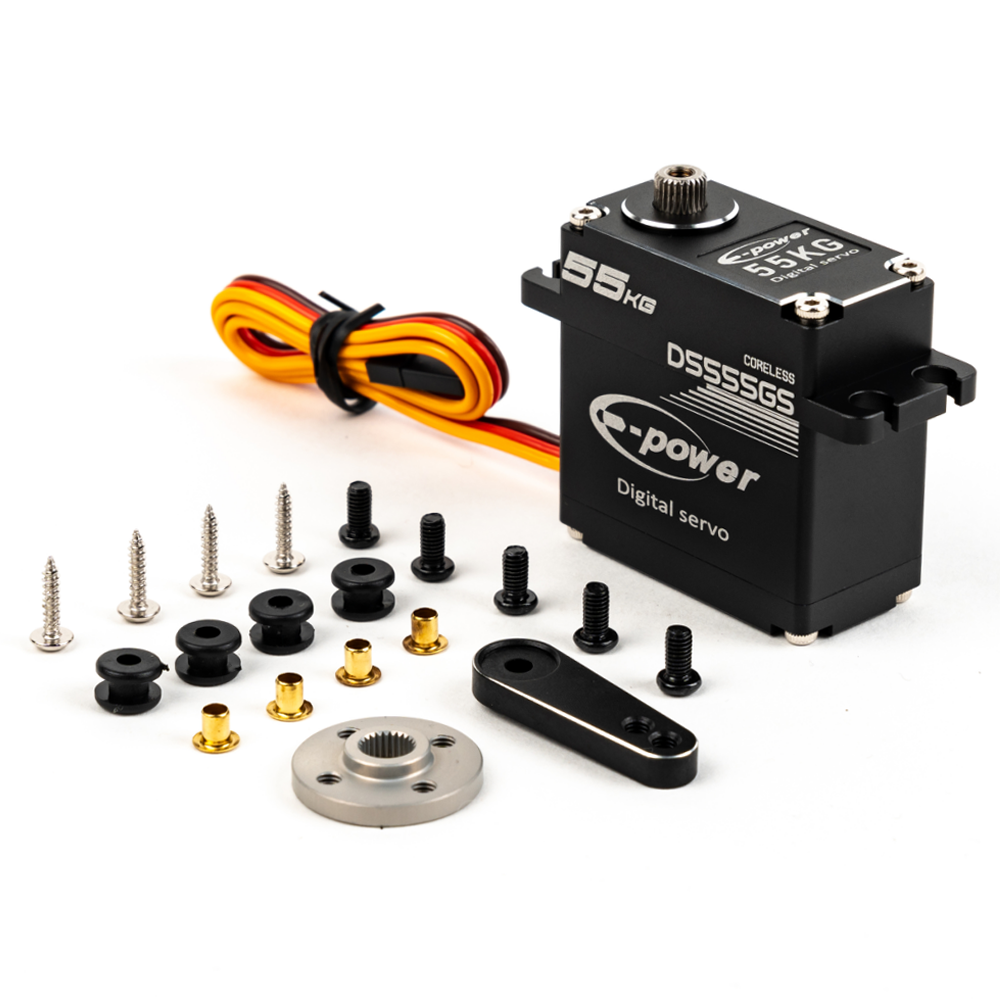

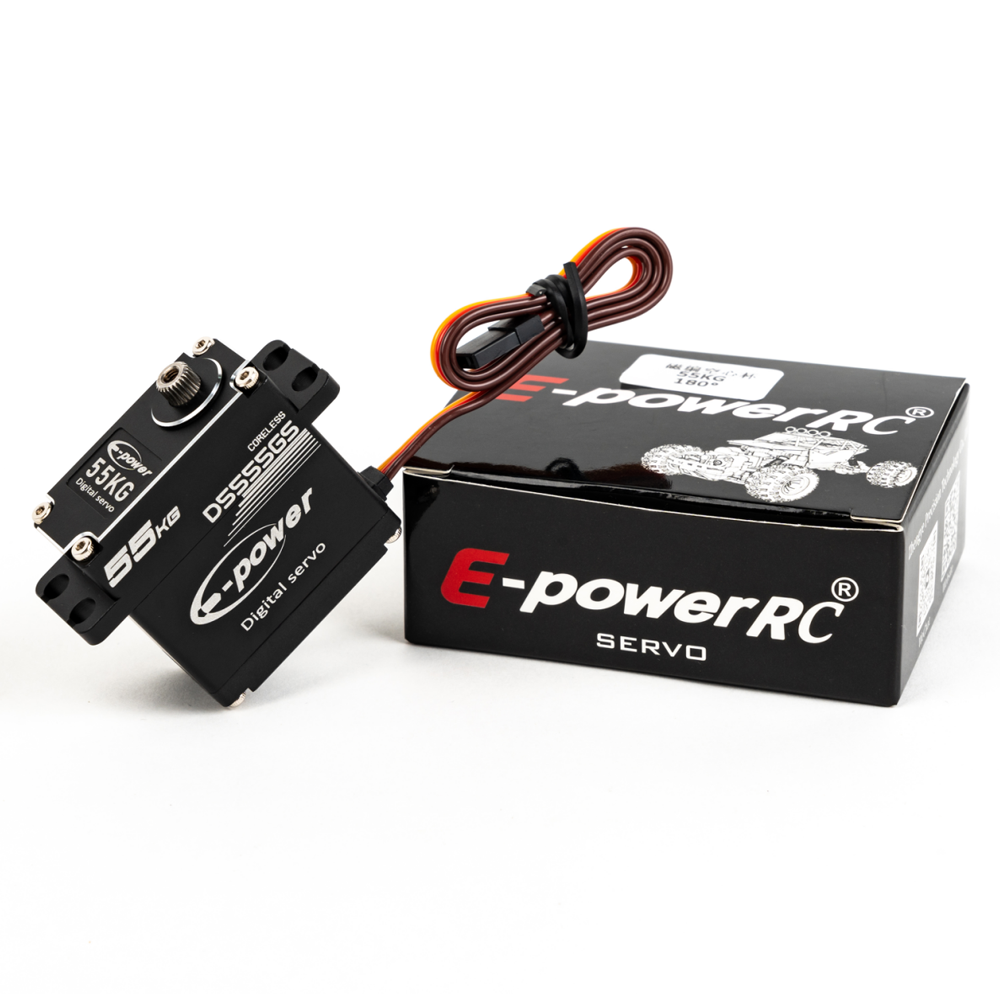

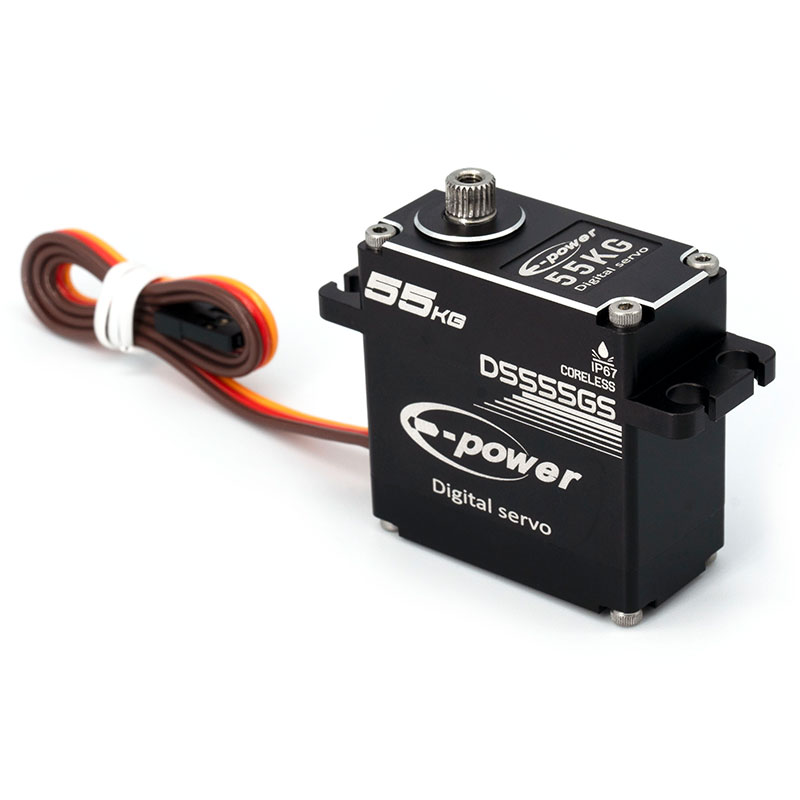

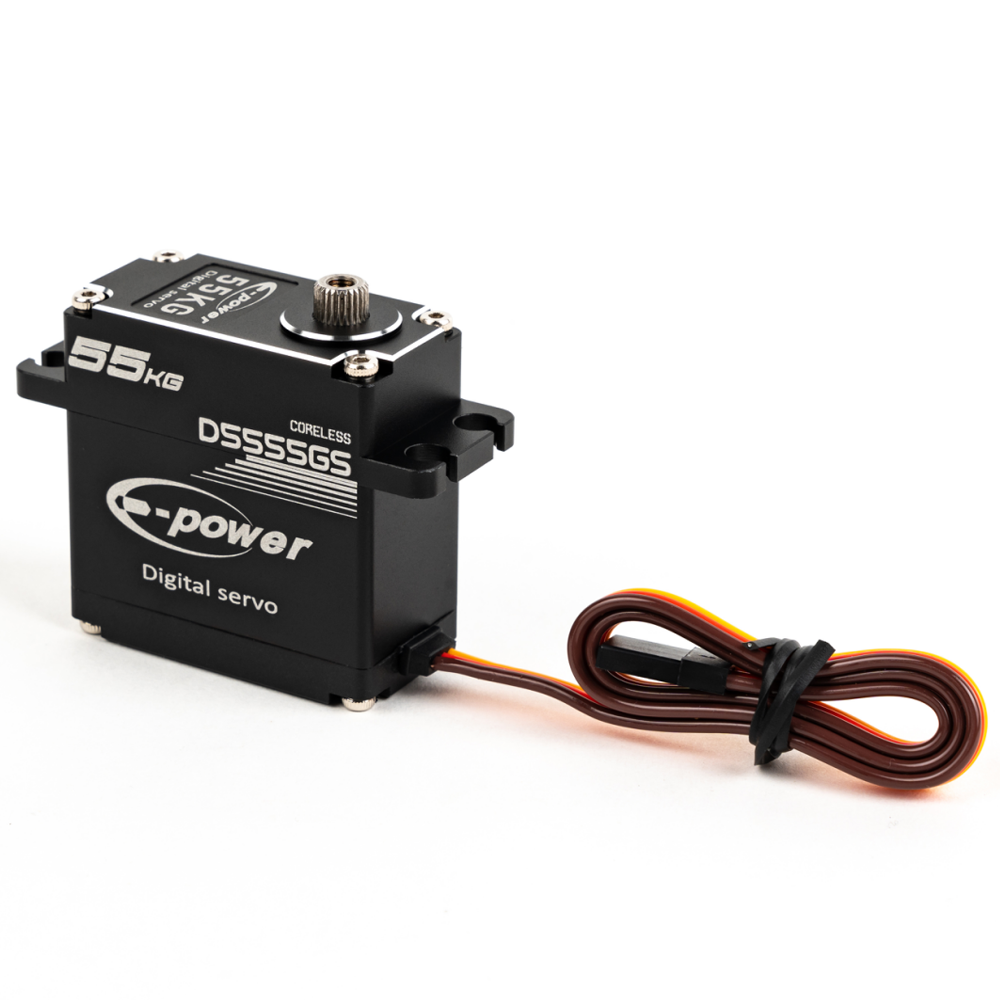

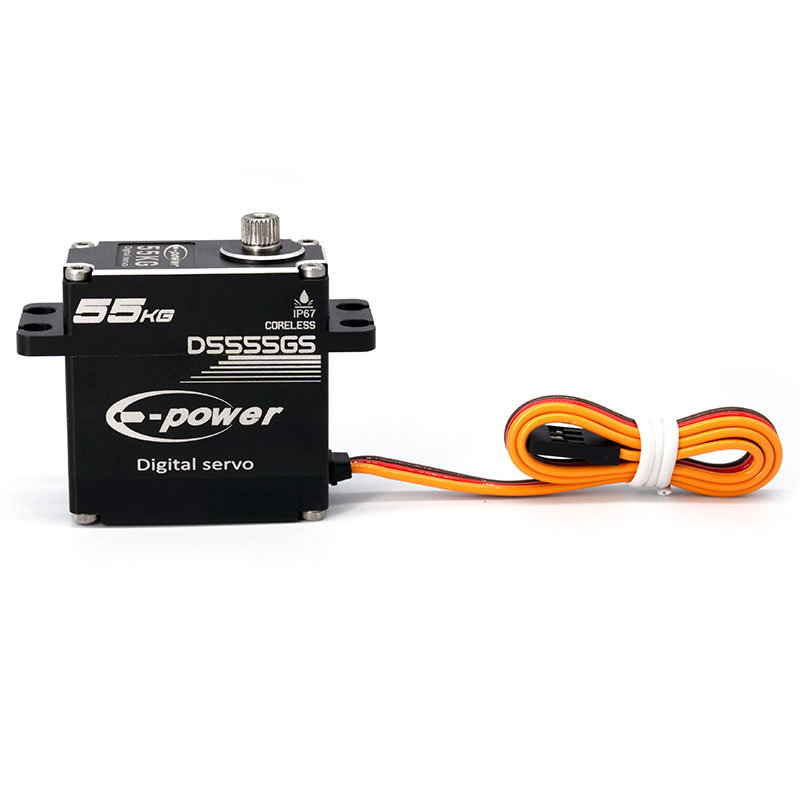

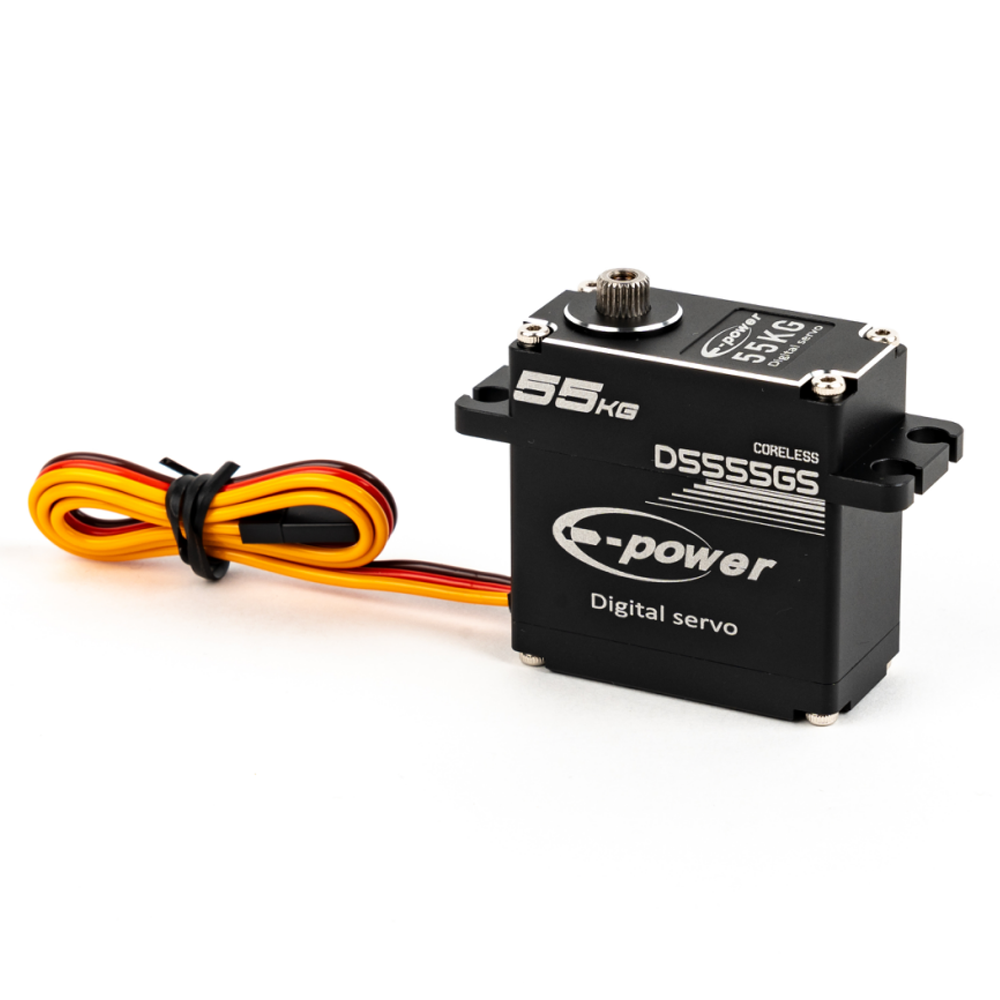

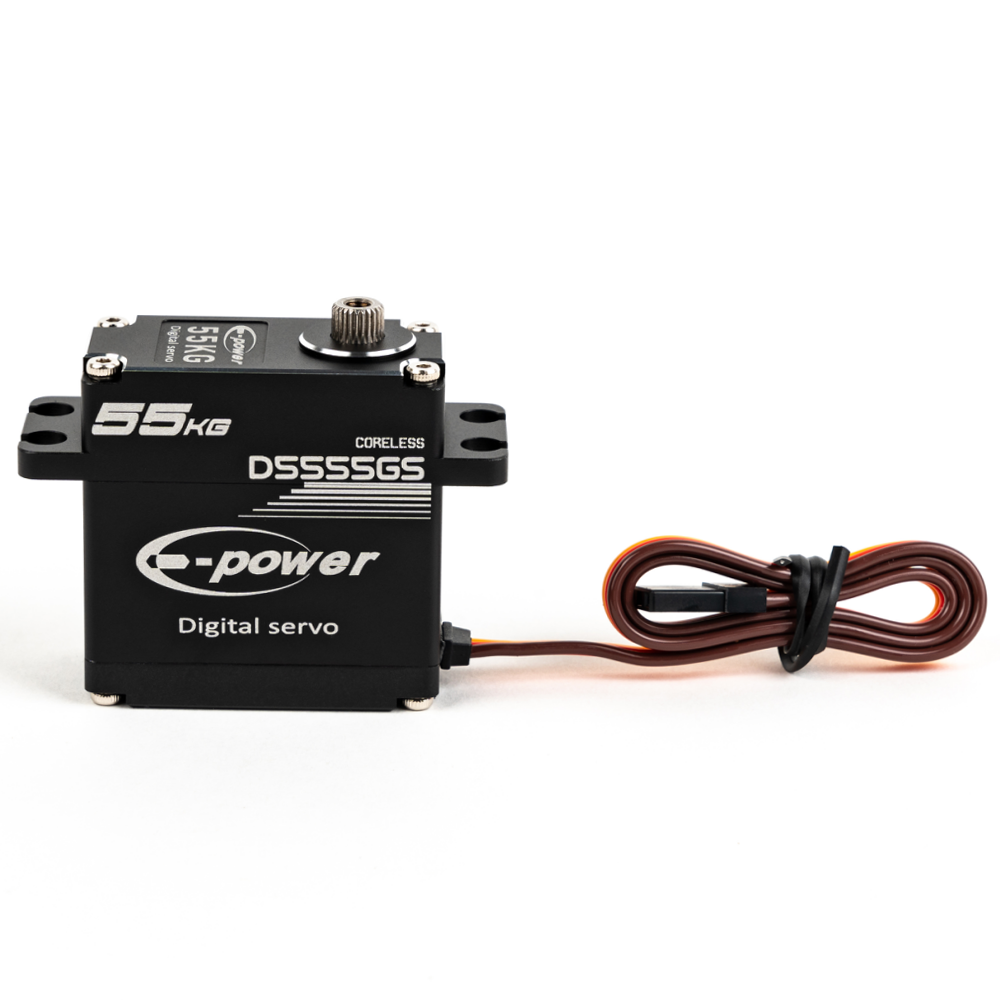

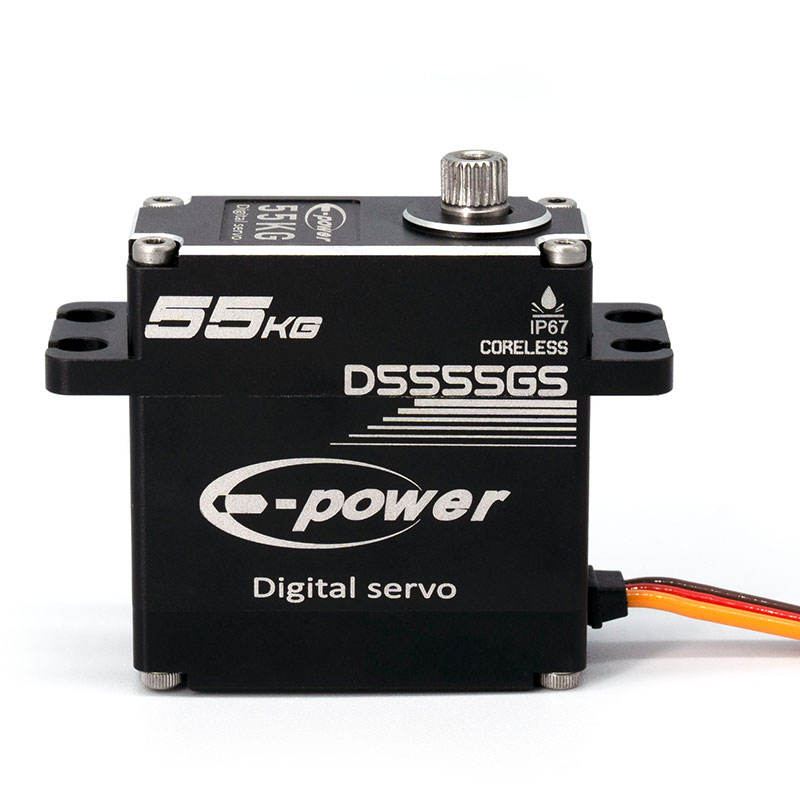

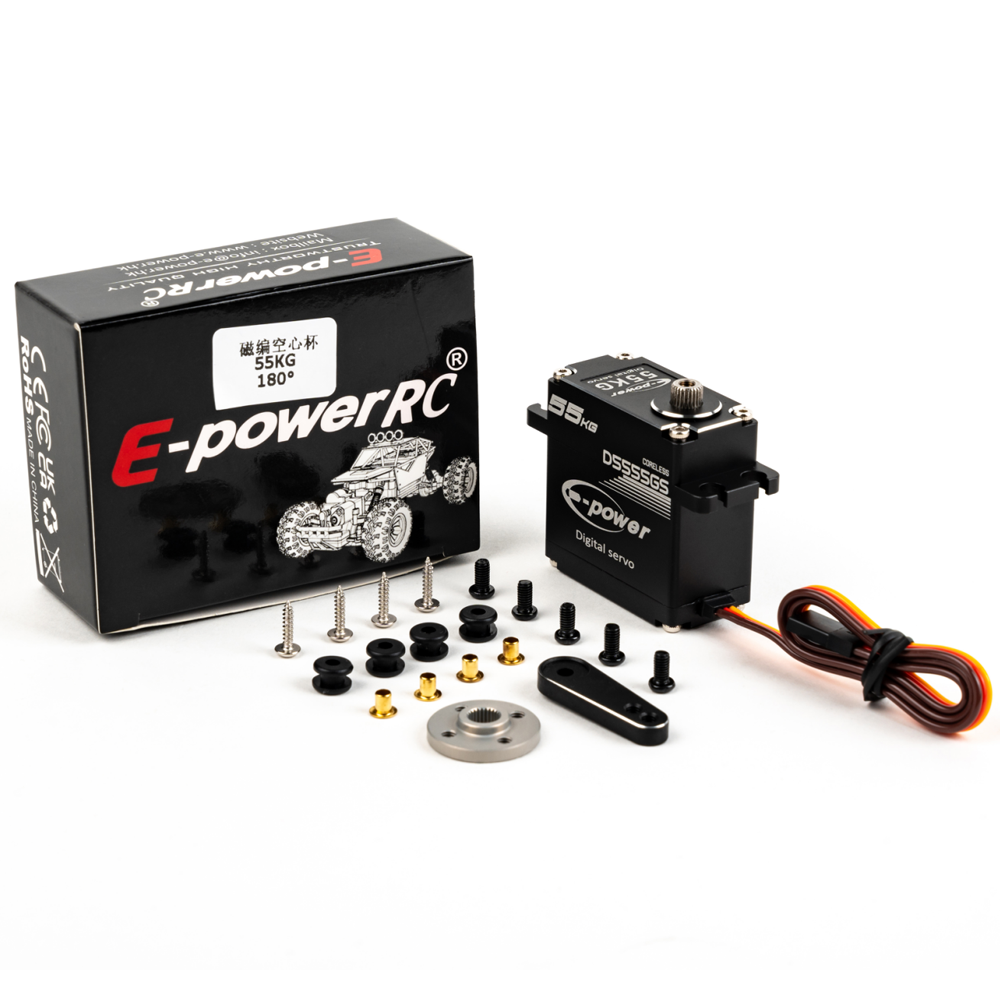

Brand: E-power
Model: D5555GS
Ball Bearing: 2BB
Diver type: Mos Drive
Motor Type: Brushless motor
Potentiometer Type: Magnetic Encoder
Amplifier Type: Digital Control
Dead band width: 1 usec
Gear Material: Metal Gear
Case Material: Aluminum Case
Operation Voltage Range: 6.0V ~8.4V
Operation Temperature Range: -20C°~ +60C°
Control Angle: 180°/270°/360° Optional
Direction: Re-clock wise/ Pulse Travel 500→2500 μsec
Control System: PWM Control (1500usec in the central point)
Circle: ＞600000 times without load
Operation Travel: 60°±1
Limit angle: 180°± 1
Dimensions: 40x20x40.50mm
Weight: 78g (without servo horn)
Standing Torque: 0.13sec/60°,43kg-cm-@6V ;0.1sec/60°,52kg-cm-@7.4V;0.08sec/60°,58kg-cm-@8.4V
Idle Current: 300mA-@6V; 320mA-@7.4V; 350mA-@8.4V
Running Current: 4500mA-@6V ; 5000mA-@7.4V; 5500mA-@8.4V
Connector Wire Length: 300MMJR Plug
Connector Wire Gauge: 22AWG
Wire Info (Brown): Negative
Wire Info (Red): Positive
Wire Info (Yellow): S Sinqle
