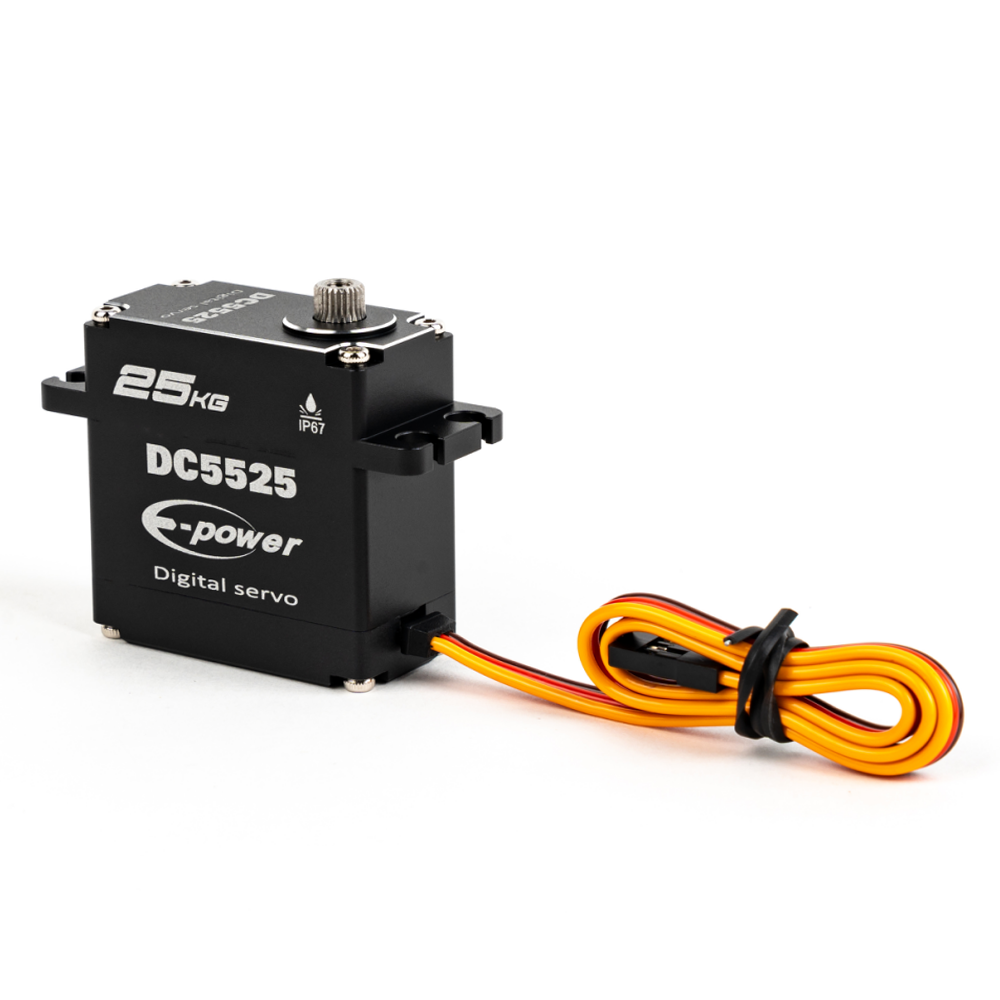

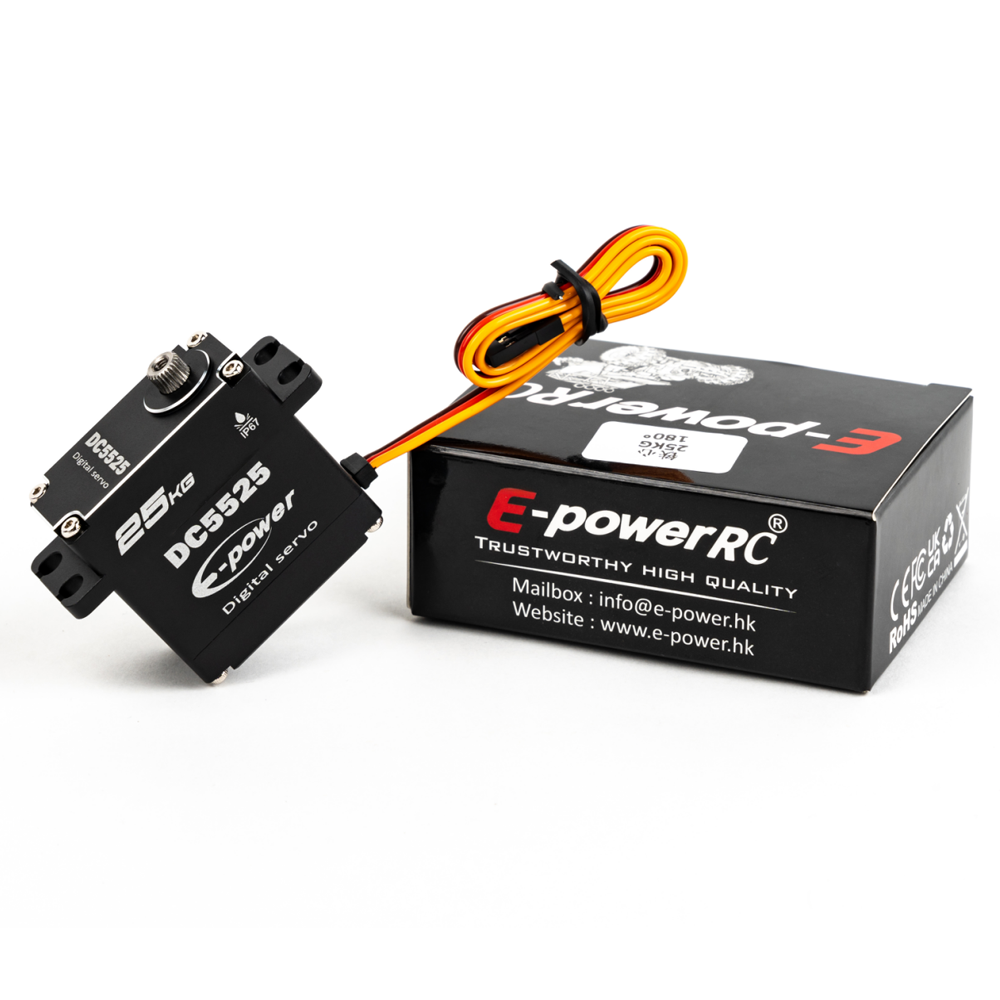

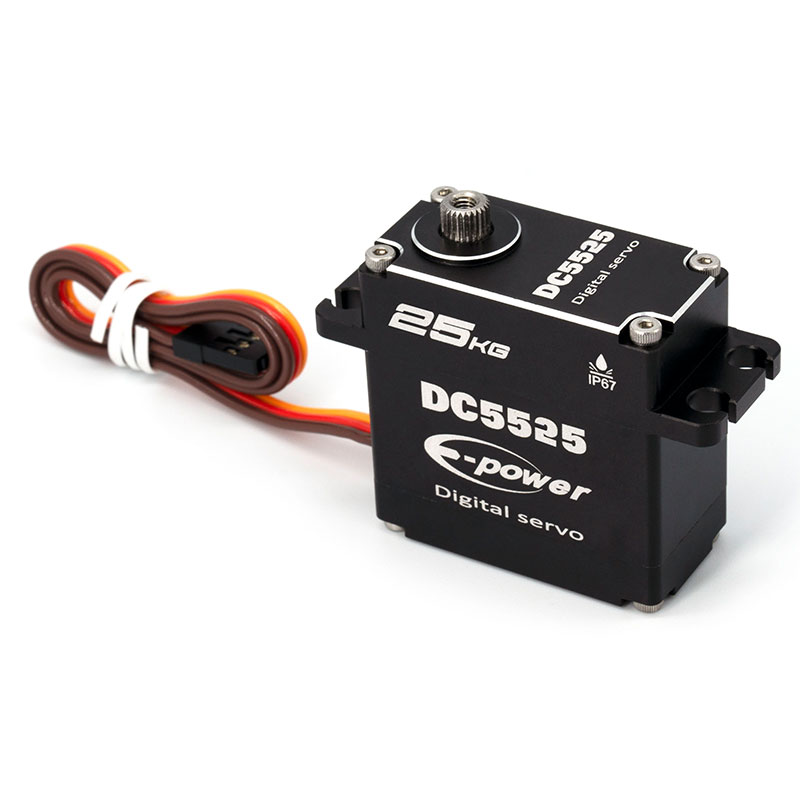

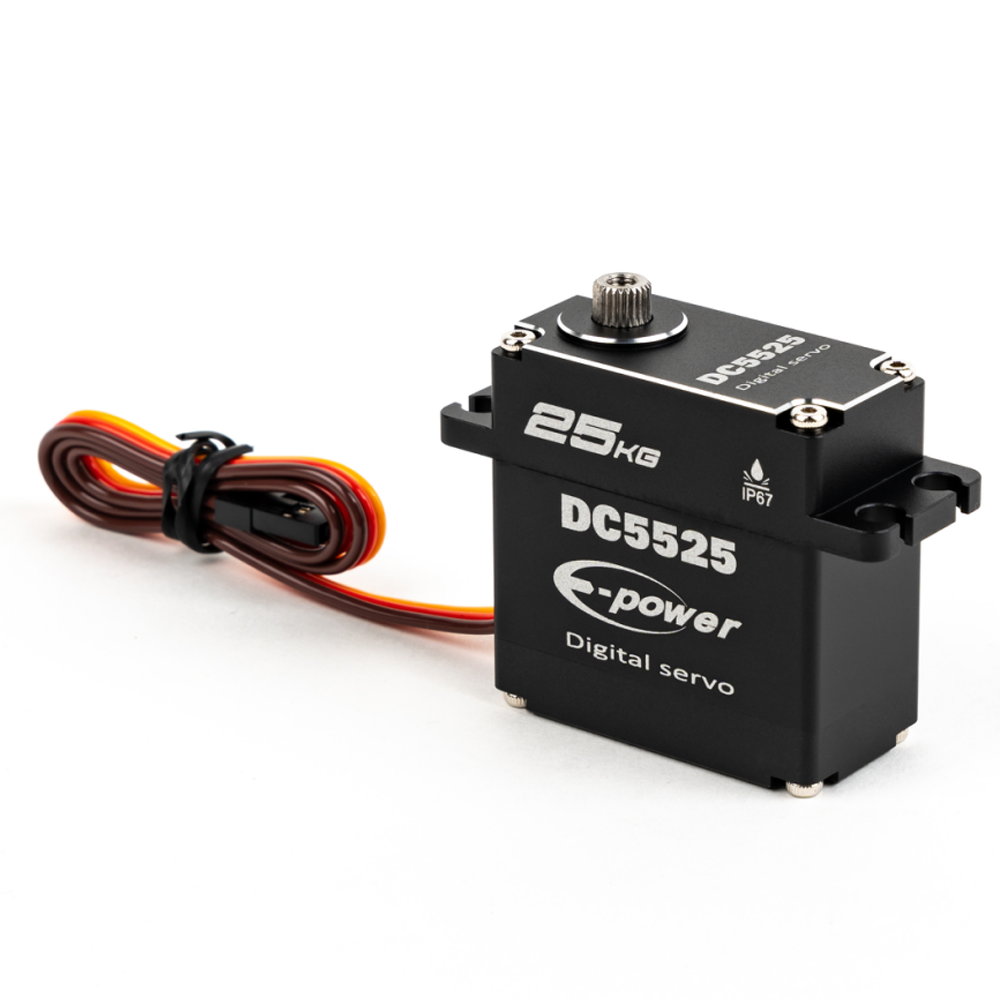

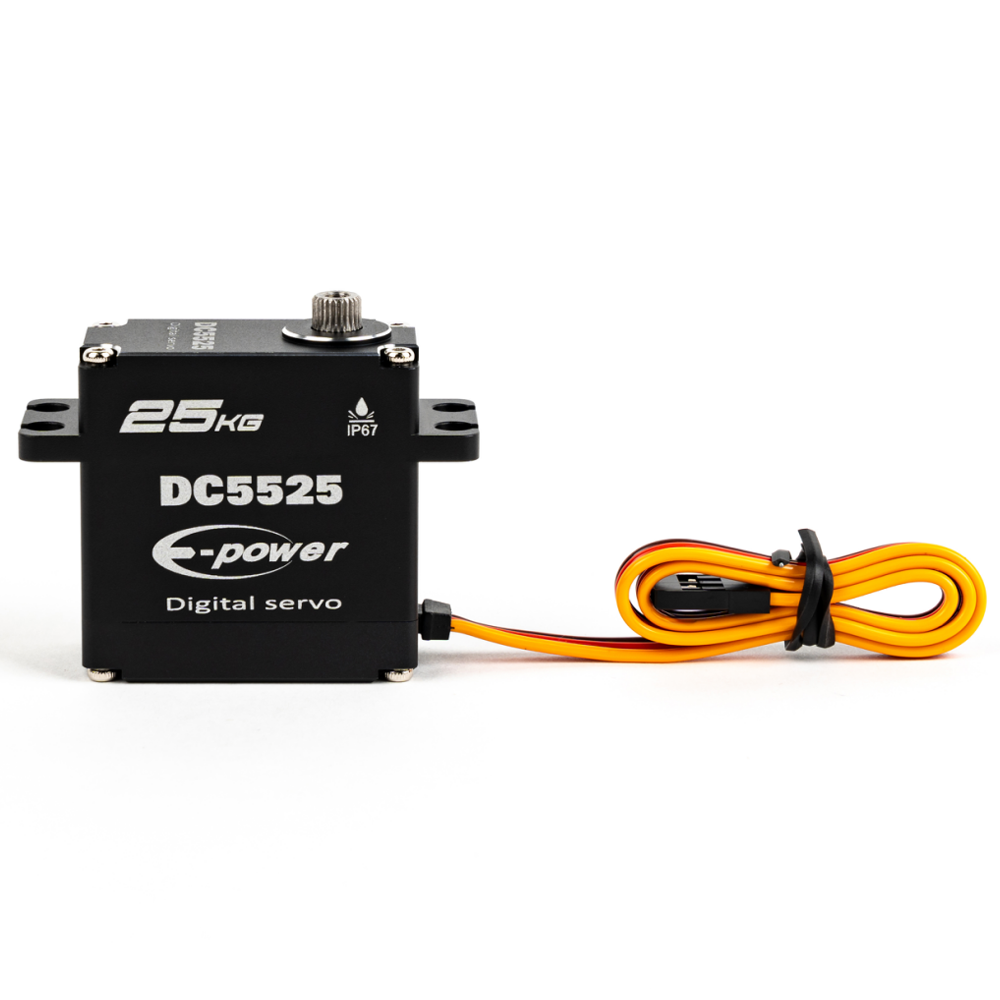

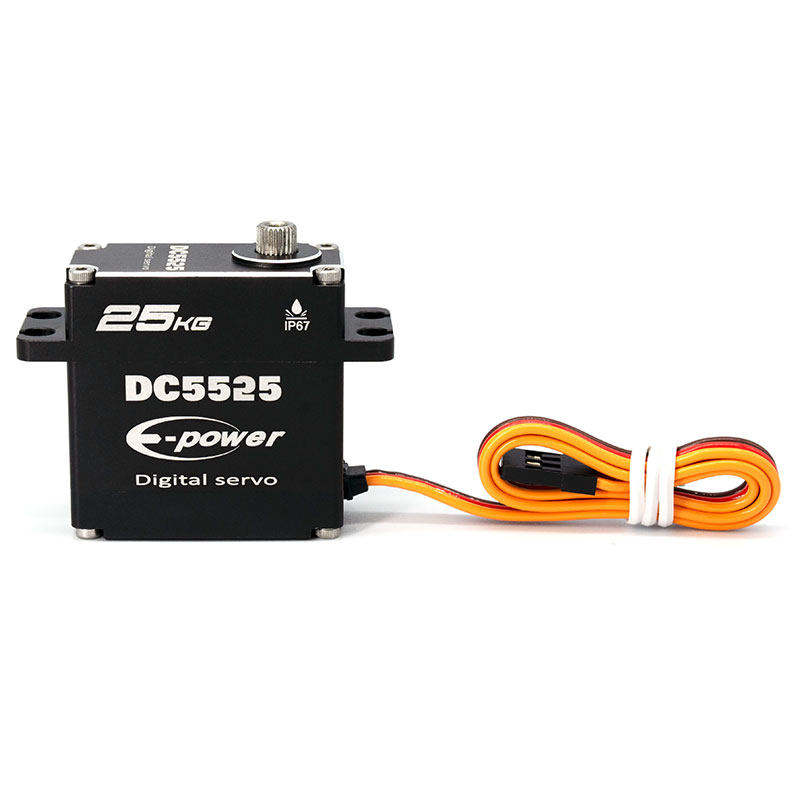

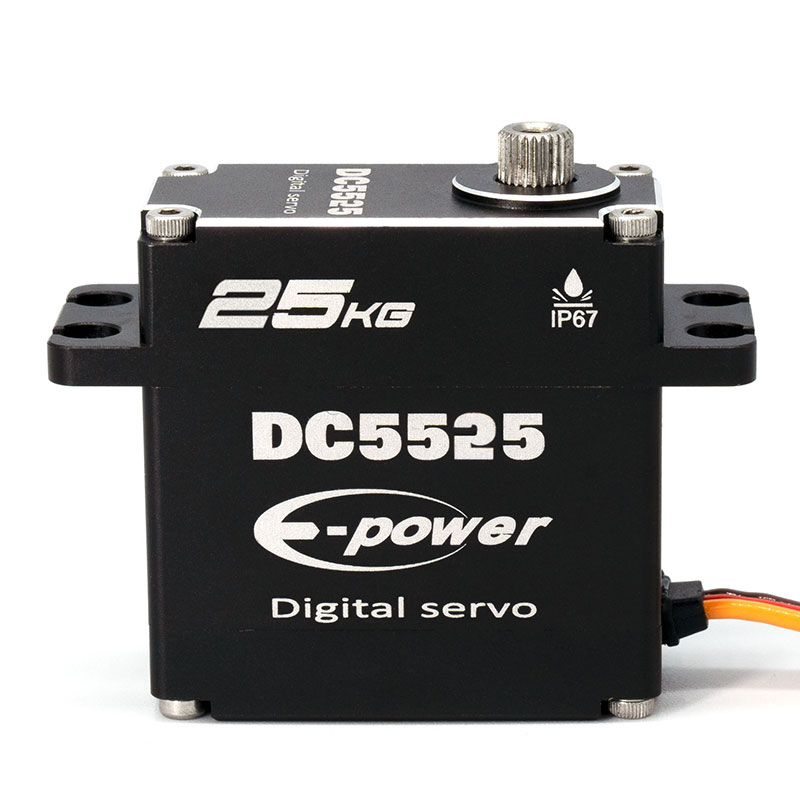

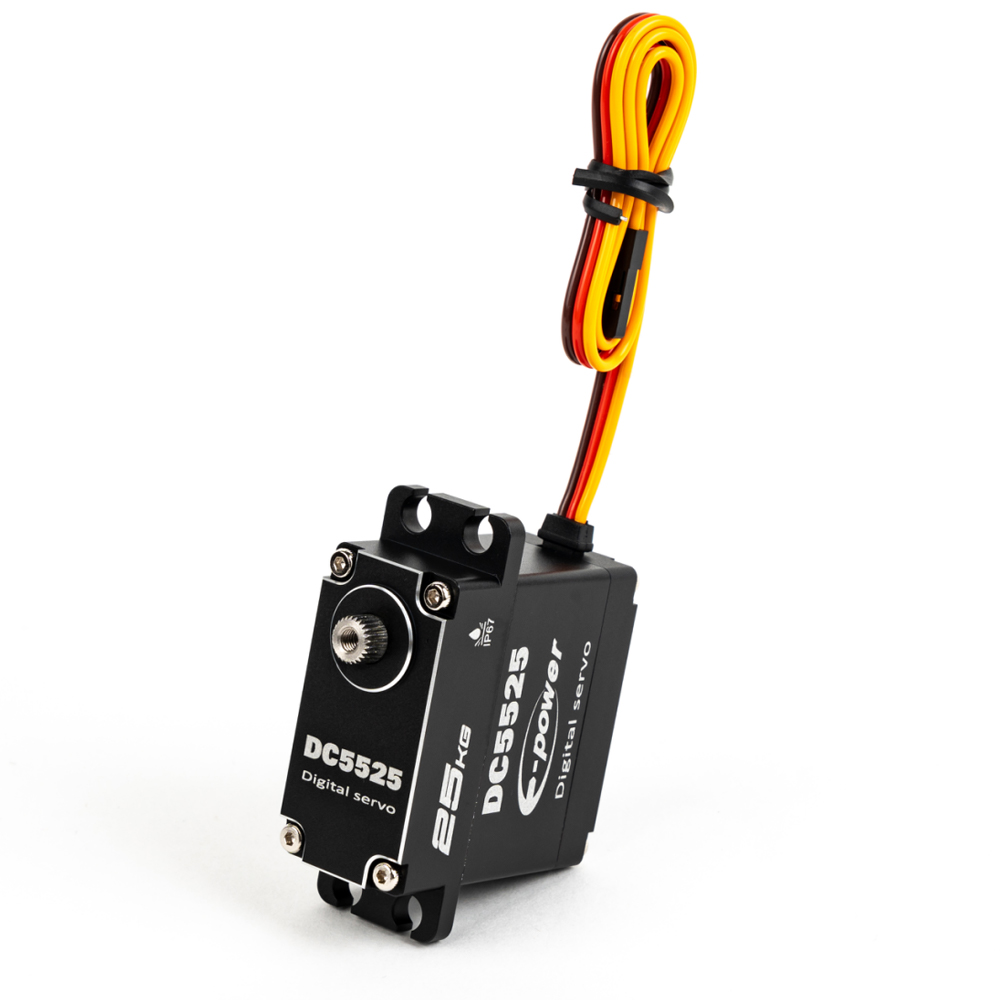

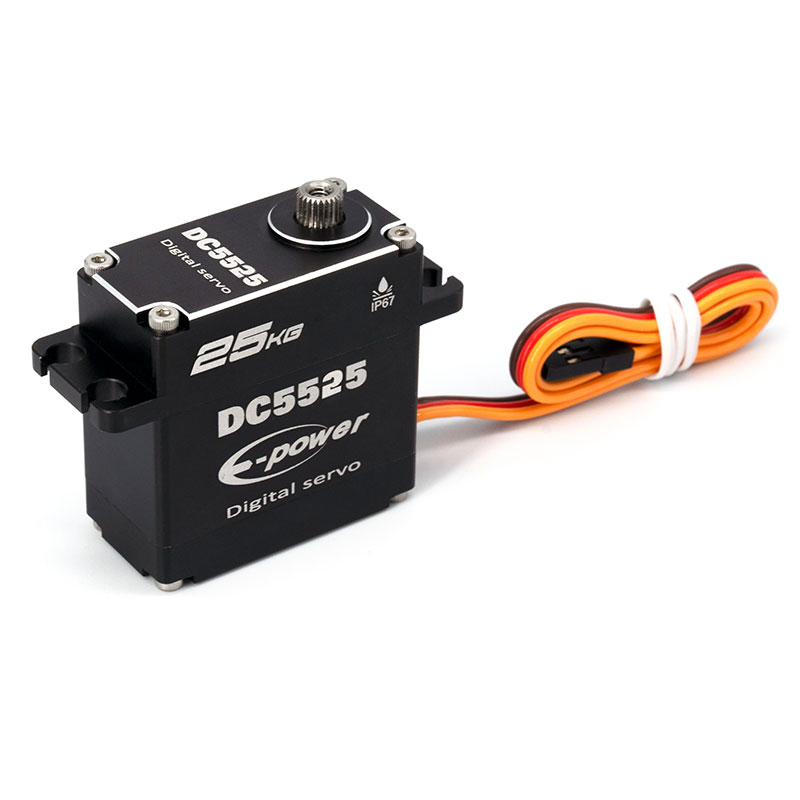

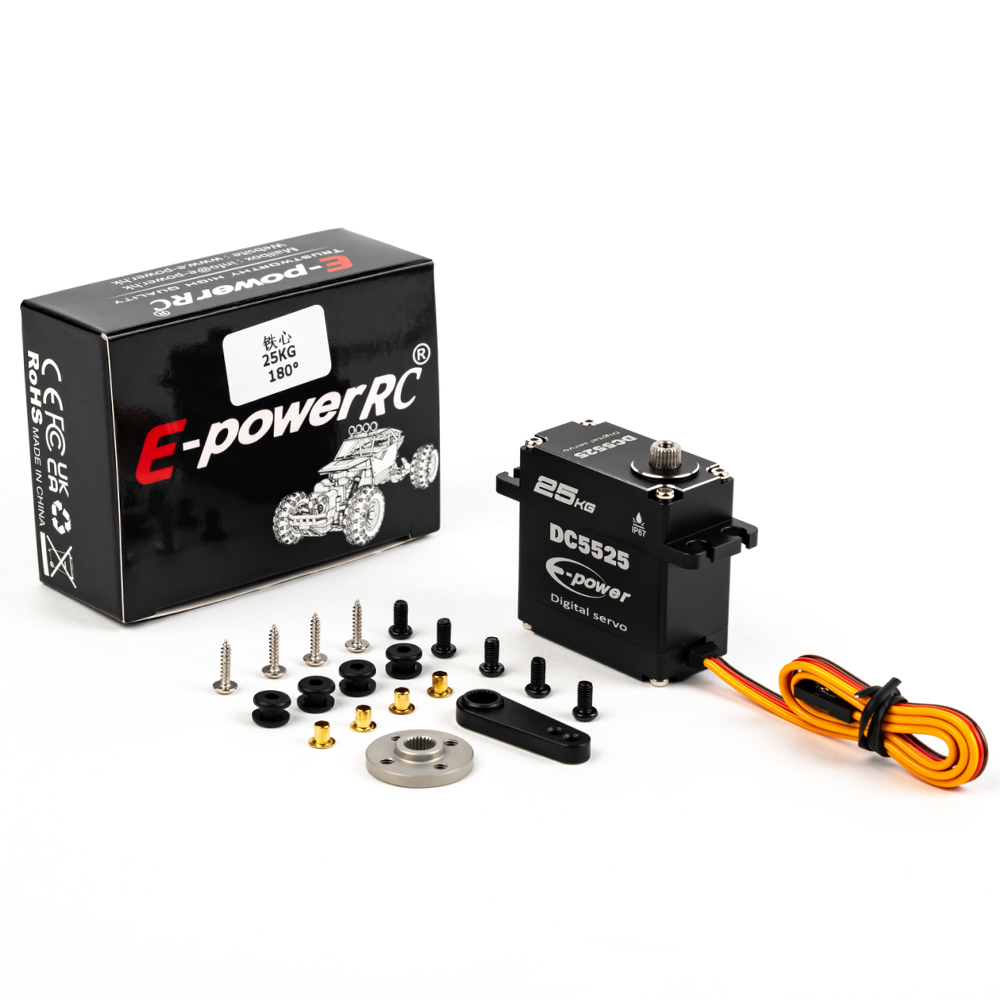

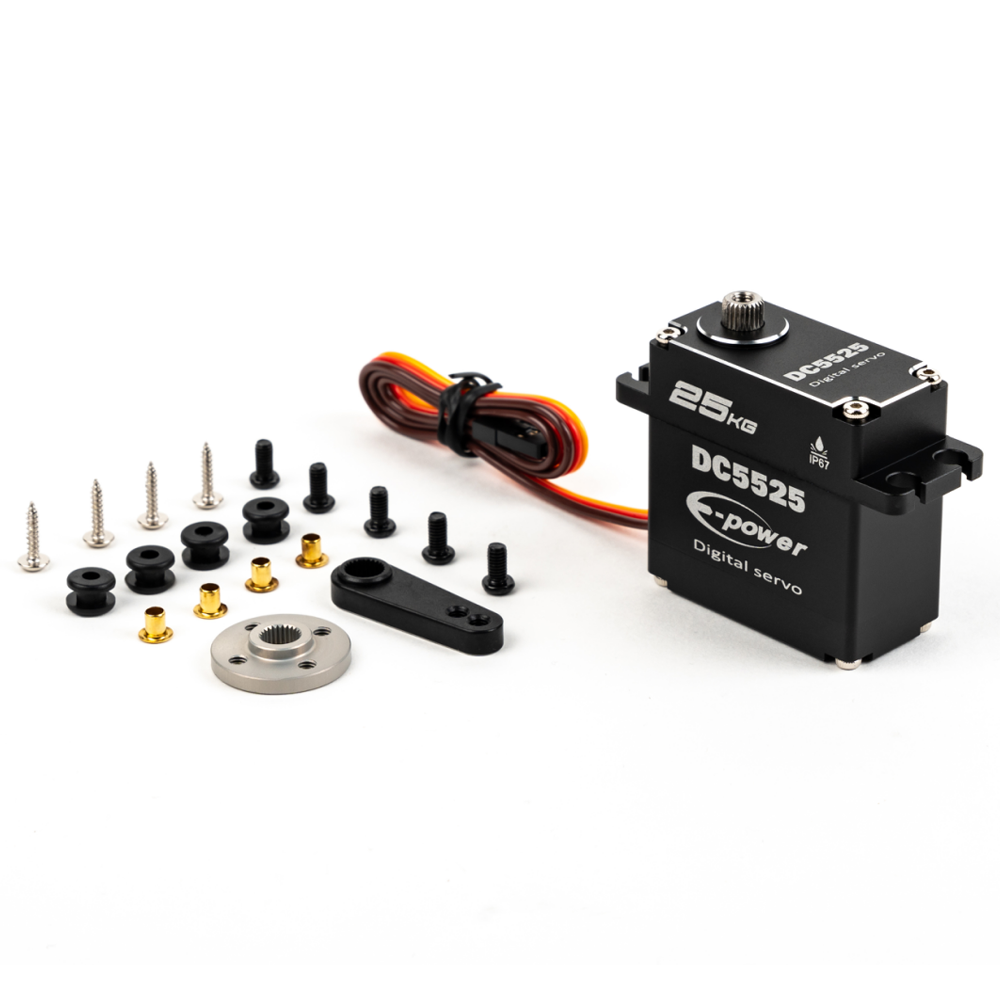

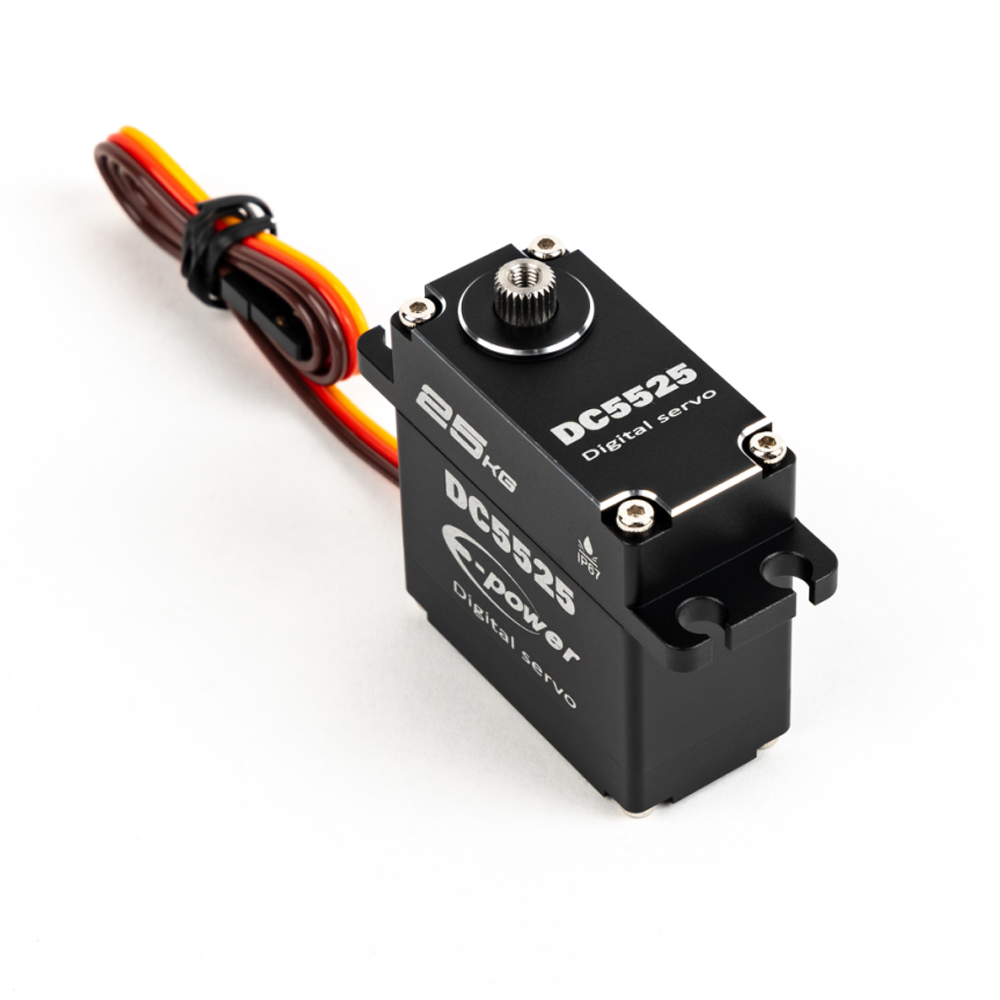

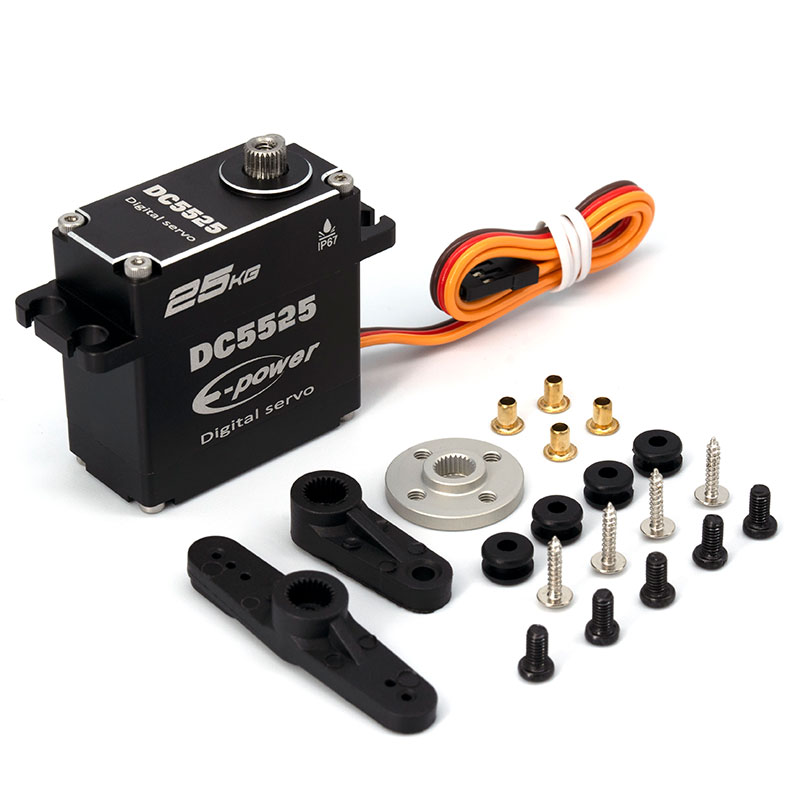

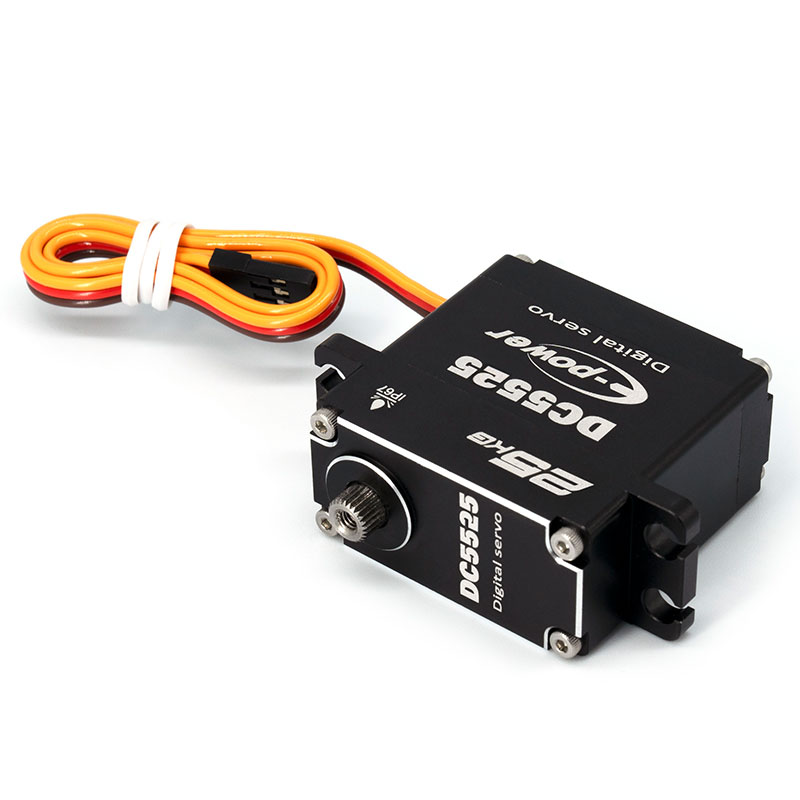

E-POWER 25kg Servo Metal Waterproof Steel Gear Standard Digital Servo 1:8RC Car TRX4 Crawler Airplabe Boat Robot Arm Angle180

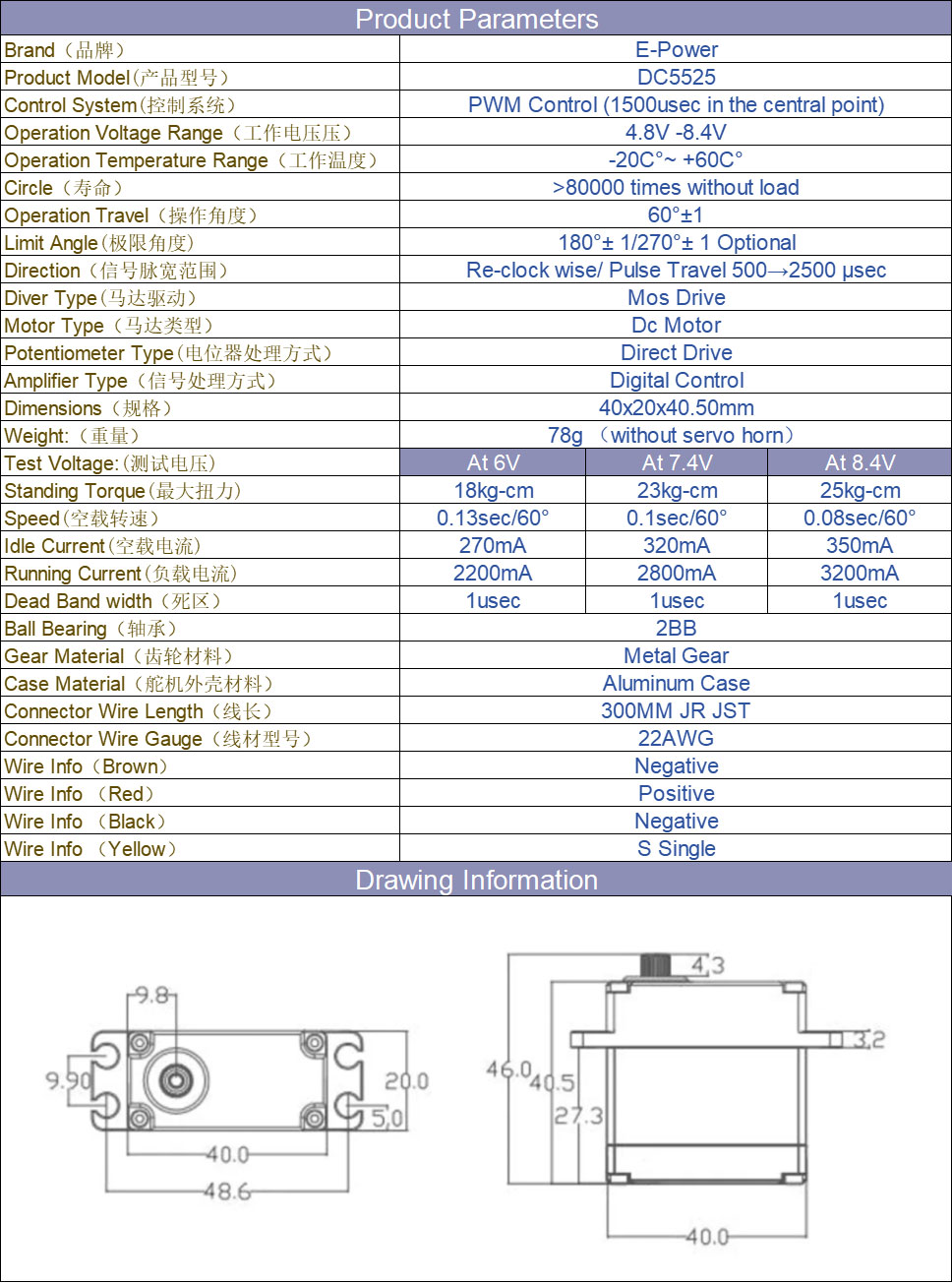

Specifications:
Brand: E-power
Model: DC5525
Ball Bearing: 2BB
Diver type: Mos Drive
Motor Type: Dc Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Dead band width: 1 usec

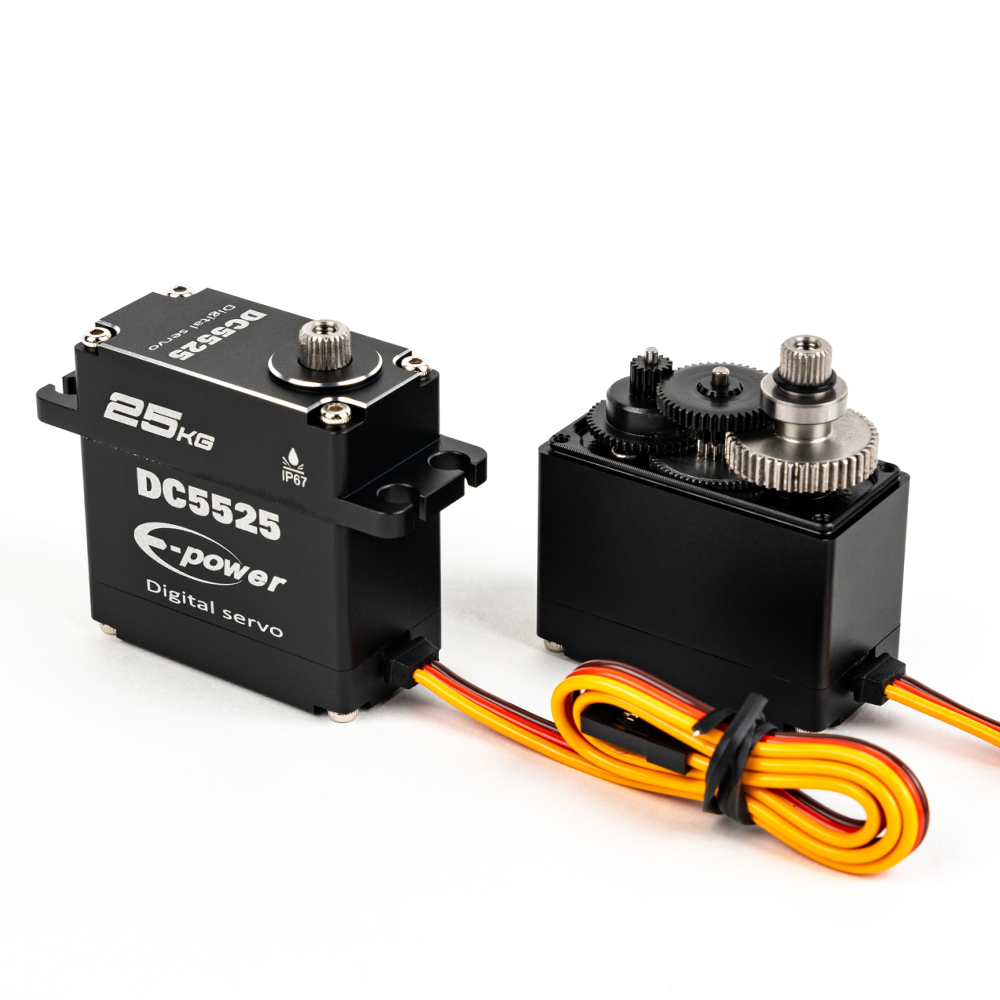

Gear Material: Metal Gear
Case Material: Aluminum Case
Operation Voltage Range: 4.8V -8.4V
Operation Temperature Range: -20C°~ +60C°
Control Angle: 180°/270°/360° Optional
Direction: Re-clock wise/ Pulse Travel 500→2500 μsec
Control System: PWM Control (1500usec in the central point)
Circle: >80000 times without load
Operation Travel: 60°±1
Limit angle: 180°± 1/270°± 1 Optiona
Dimensions: 40x20x40.50mm
Weight: 78g （without servo horn）
Standing Torque: 0.13sec/60°,18kg-cm-@6V ;0.1sec/60°,23kg-cm-@7.4V ;0.08sec/60°,25kg-cm-@8.4V
Idle Current: 270mA-@6V ; 320mA-@7.4V; 350mA-@8.4V
Running Current: 2200mA-@6V ; 2800A-@7.4V; 2300A--@8.4V
Connector Wire Length: 300MM JR JST
Connector Wire Gauge: 22AWG
Wire Info (Brown): Negative
Wire Info (Red): Positive
Wire Info (Black): Negative
Wire Info (Yellow): S Sinqle
